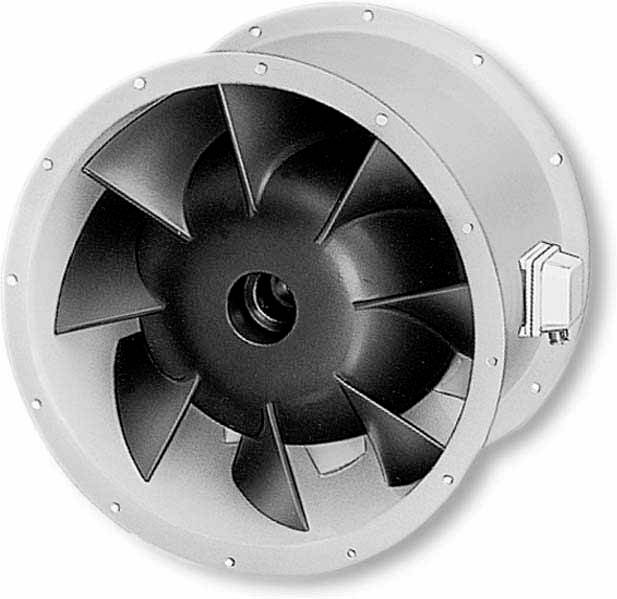

Image similar
Helios Ventilatoren 06672 Duct extractor fan 230 V 1600 m³/h 280 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Design: High-pressure pipe fan
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 280 mm
- Max. Air temperature 60 °C.
- With thermal protection: Yes
- 2-speed engine: no.
- Pole-switchable: no.
- Housing material: Steel, treated
- Product type
Duct extractor fan
- Nominal voltage
230 V
- Air flow rate
1600 m³/h
- Ventilation features
Adjustable
- Suitable for pipe Ø
280 mm
IP54
- Material
Steel
- Dim
(Ø x L) 346 mm x 300 mm
- Length
300 mm
- (Ø)
346 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295963 Helios Ventilatoren 06672 Duct extractor fan 230 V 1600 m³/h 280 mm
Description
High-pressure pipe fan with cylindrical tube sleeve, flange on both sides, directly driven. Cylindrical tube made of galvanized sheet steel, with flange molded on both sides, hole pattern according to DIN 24155, built-in post-gluing wheel. Semi-axial impeller, eight spatially curved thermoplastic blades. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, cannot be reversed.
