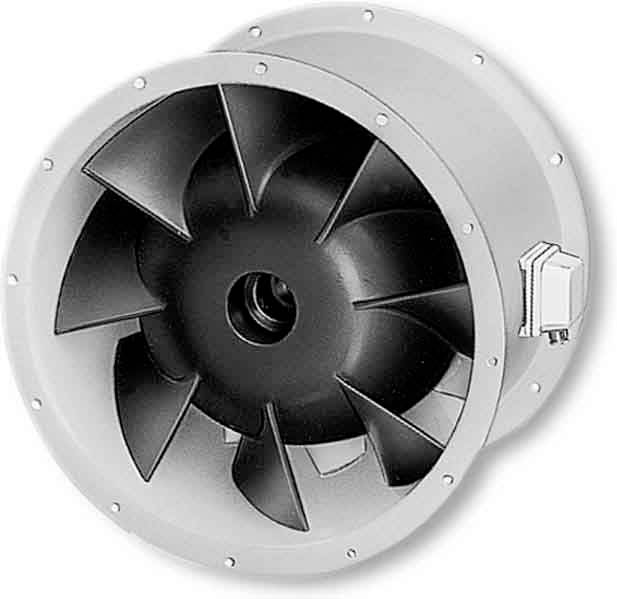

Helios Ventilatoren 06684 Duct extractor fan 400 V 7220 m³/h 355 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Design: High-pressure pipe fan
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 355 mm
- Max. Air temperature 60 °C.
- With thermal protection: Yes
- 2 speed motor: Yes
- Pole-switchable: no.
- Housing material: Steel, treated
- Product type
Duct extractor fan
- Nominal voltage
400 V
- Air flow rate
7220 m³/h
- Suitable for pipe Ø
355 mm
IP54
- Material
Steel
- Dim
(Ø x L) 420 mm x 300 mm
- Length
300 mm
- (Ø)
420 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297924 Helios Ventilatoren 06684 Duct extractor fan 400 V 7220 m³/h 355 mm
Description
High-pressure pipe fan with cylindrical tube sleeve, flange on both sides, directly driven. Cylindrical tube made of galvanized sheet steel, with flange molded on both sides, hole pattern according to DIN 24155, built-in post-gluing wheel. Semi-axial impeller, eight spatially curved blades made of galvanized steel. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit rotor motor two-speed with star-delta circuit, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
