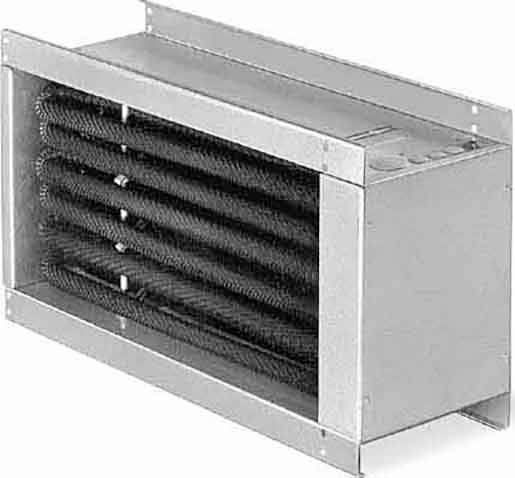

Helios Ventilatoren 08702 Heater battery electronical EHR-K 6/40/20 6 kW
EAN:
Part number:
Item no:
Technical specifications
- Nominal height channel 223 mm
- Product type
Heater battery
- Operation type
electronical
- Operating voltage
400 V
- Heating power (W / BTU/h)
6 kW
- Heating power
6 kW
- Width
423 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295943 Helios Ventilatoren 08702 Heater battery electronical EHR-K 6/40/20 6 kW
Description
Closed pipe heating element with low surface temperature wired on external connection box, can be switched in several groups. Casing made of galvanized sheet steel with two-sided connection flanges for installation in the channel. With self-resetting (temperature rating 90 °C) and manually resettable temperature limiter (temperature rating temp. 120 °C).
