Helios Ventilatoren 09510 Duct extractor fan 230 V 910 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Plug-in end
- Electrical connection: Cable
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 200 mm
- Max. Air temperature 70 °C.
- With thermal protection: Yes
- 2-speed engine: no.
- Pole-switchable: no.
- Housing material: Steel, treated
- Product type
Duct extractor fan
- Nominal voltage
230 V
- Air flow rate
910 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
200 mm
IP44
- Material
Steel
- Length
616 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292407 Helios Ventilatoren 09510 Duct extractor fan 230 V 910 m³/h 200 mm
Description

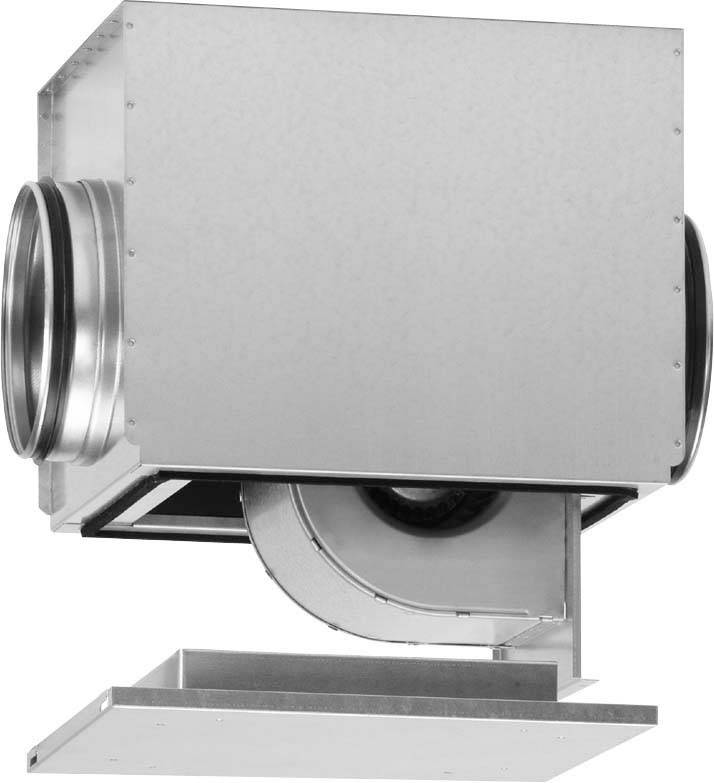

Radial-pipe fan with noise-damped casing. Sound-absorbing casing made of galvanized sheet steel with round connection supports tuned to standard pipes. Sound-absorbing perforated plate inner lining, deposited with 50mm strong mineral fiber plate. Removable lid Fan room freely accessible. Motor and impeller can be swiveled out. High-performance radial impeller with backward curved blades made of plastic. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC external rotor motor, closed design, maintenance-free, speed can be controlled by voltage reduction, built-in thermal contacts, sealed, low-noise ball bearings with long-term lubrication.
