Helios Ventilatoren 1033 Axial fan 0 V 17000 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 17000 m³/h
- Speed 1390 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 630 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1390 U/min
- Air flow rate
17000 m³/h
- Ventilation features
Adjustable
IP55
- Factory colour
White
- Material
Steel
- Dim
(Ø) 630 mm
- (Ø)
630 mm
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161657 Helios Ventilatoren 1033 Axial fan 0 V 17000 m³/h
Description

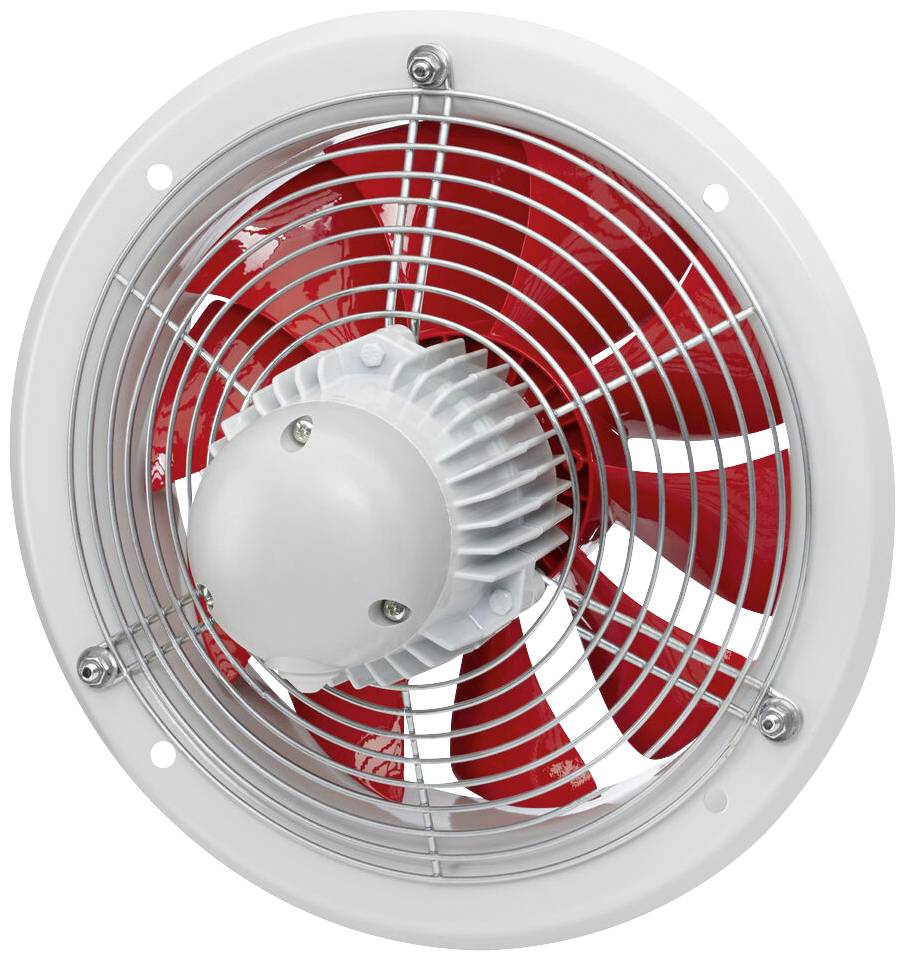

Axial high-performance fan with wall mounting ring, influx nozzle, directly driven. Wall ring made of galvanized sheet steel, double painted, papyrus white color, nozzle with protective grille at the suction side. Connection box on the motor. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors with a double-turn star delta connection, closed design, maintenance-free, sealed and low-noise ball bearings with long-term lubrication.
