Helios Ventilatoren 130 Radial extractor 230 V 400 m³/h 125 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 400 m³/h.
- Connection voltage 230 V
- Power consumption 0.061 kW
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 50°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length: 314 mm
- Channel diameter 125 mm
- Connection: Flange
- Product type
Radial extractor
- Nominal voltage
230 V
0.061 kW
- Air flow rate
400 m³/h
- Suitable for pipe Ø
125 mm
- Min. temperature
50 °C
- Max. temperature
50 °C
IP44
- Material
Steel
- Length
314 mm
- Depth
314 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161468 Helios Ventilatoren 130 Radial extractor 230 V 400 m³/h 125 mm
Description

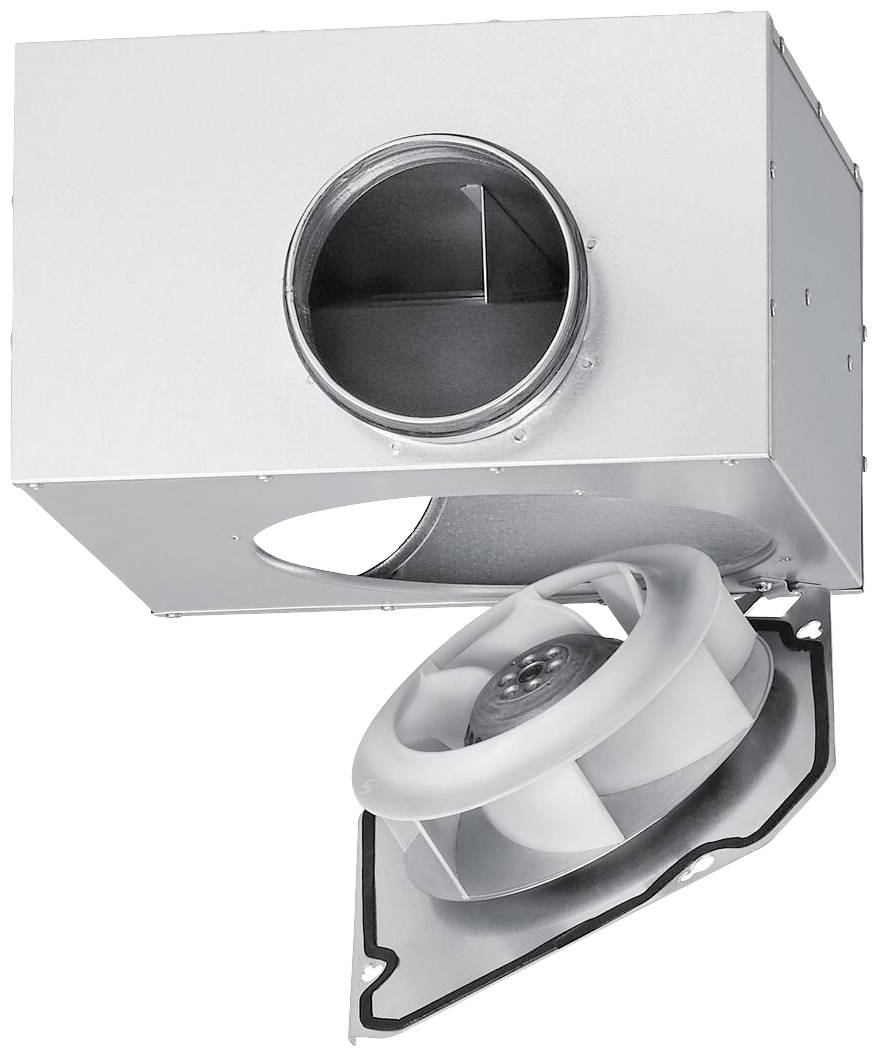

Flat radial tube fan in silenced version SlimVent SVS 125, with 2 power settings 395/270 m³/h volume flow. Suitable for ventilation of damp rooms, toilets, etc. in industry, trade and living areas. Casing in longer design made of zinc-plated steel sheet with sound insulation, more than 50 mm thick mineral wool lining. Standard delivery on suction and pressure side with connection supports and lip seal for standard tube diameter. Motor-impeller unit can be swiveled for cleaning and revision. Wheel: Energy-saving radial impeller with backward curved blades made of high-quality plastic. Dynamically balanced for quiet running. Drive: Maintenance-free, closed, ball-bearing energy-saving motor with thermal overload protection in the winding. Control: Using electronic speed controller ESU1/ESA1 (item no.: 0236/0238) or transformer speed controller TSW 1.5 (item no.: 1495) . Electrical connection via external terminal box (IP55) located on the housing.
