Helios Ventilatoren 1468 In-line extractor 400 V 5780 m³/h 450 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 5780 m³/h.
- Connection voltage 400 V
- Power consumption 0.378 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP55
- Max. Air temperature 60°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: Yes
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length 330 mm.
- Diameter of housing 515 mm
- Channel diameter 450 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
400 V
- Current consumption
378 W
378 W
- Air flow rate
5780 m³/h
- Ventilation features
Adjustable
- Suitable for pipe Ø
450 mm
IP55
- Material
Steel
- Dim
(Ø x L) 450 mm x 330.00 mm
- Length
330.00 mm
- Depth
330 mm
- (Ø)
450 mm
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161786 Helios Ventilatoren 1468 In-line extractor 400 V 5780 m³/h 450 mm
Description

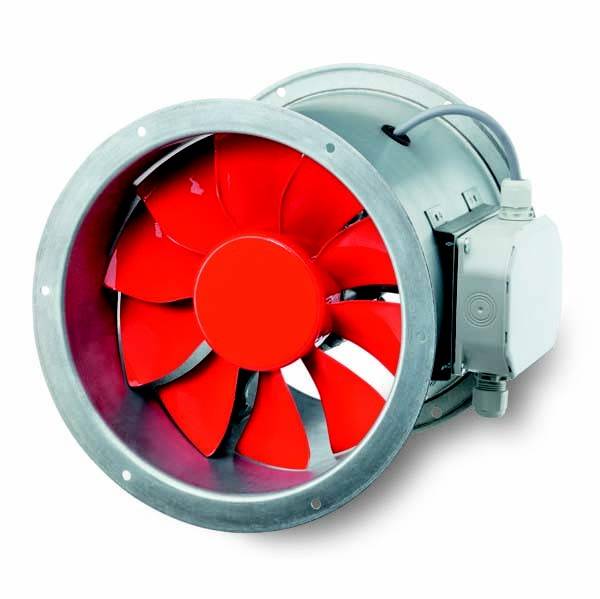

Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with high performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit motors with a double-turn star delta connection, closed design, maintenance-free, sealed and low-noise ball bearings with long-term lubrication.
