Helios Ventilatoren 18 Radial extractor 230 V 800 m³/h 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 800 m³/h.
- Connection voltage 230 V
- Power consumption 0.13 kW
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Other
- Protection type (IP) IP44
- Max. Air temperature 50°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length: 362 mm
- Channel diameter 160 mm
- Connection: Flange
- Product type
Radial extractor
- Nominal voltage
230 V
0.130 kW
- Air flow rate
800 m³/h
- Suitable for pipe Ø
160 mm
- Min. temperature
50 °C
- Max. temperature
50 °C
IP44
- Material
Steel
- Length
362 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161504 Helios Ventilatoren 18 Radial extractor 230 V 800 m³/h 160 mm
Description

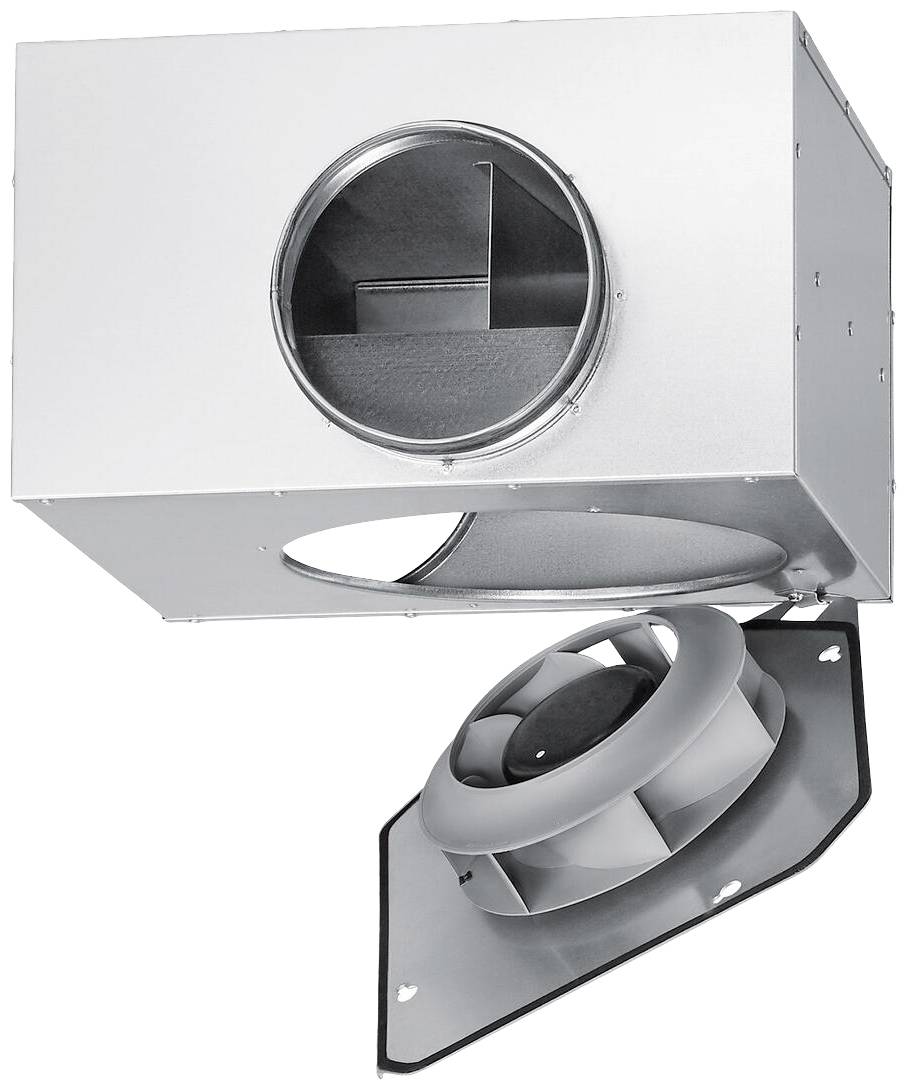

EC Radial tubular fan with noise-damped, flat casing. Casing in longer design made of zinc-plated steel sheet with sound insulation, more than 50 mm thick mineral wool lining. Standard delivery on suction and pressure side with connection supports and lip seal for standard tube diameter. Motor-impeller unit can be swiveled for cleaning and revision. Wheel: Energy-saving radial impeller with backward curved blades made of high-quality plastic. Dynamically balanced for quiet running. Drive by energy-saving, controllable EC external rotor motor in protection class IP44 with the highest degree of efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Continuous speed control with potentiometer or continuous speed regulation with universal control system EUR-EC. Connection via standard terminal box (IP55) on the outside of the housing.
