Helios Ventilatoren 210 In-line extractor 230 V 5500 m³/h 500 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 5500 m³/h.
- Connection voltage 230 V
- Power consumption 0.233 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP54
- Max. Air temperature 40°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length 330 mm.
- Diameter of housing 565 mm
- Channel diameter 500 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
233 W
233 W
- Air flow rate
5500 m³/h
- Ventilation features
Adjustable
- Suitable for pipe Ø
500 mm
IP54
- Material
Steel
- Dim
(Ø x L) 500 mm x 330.00 mm
- Length
330.00 mm
- (Ø)
500 mm
- Operating voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161327 Helios Ventilatoren 210 In-line extractor 230 V 5500 m³/h 500 mm
Description

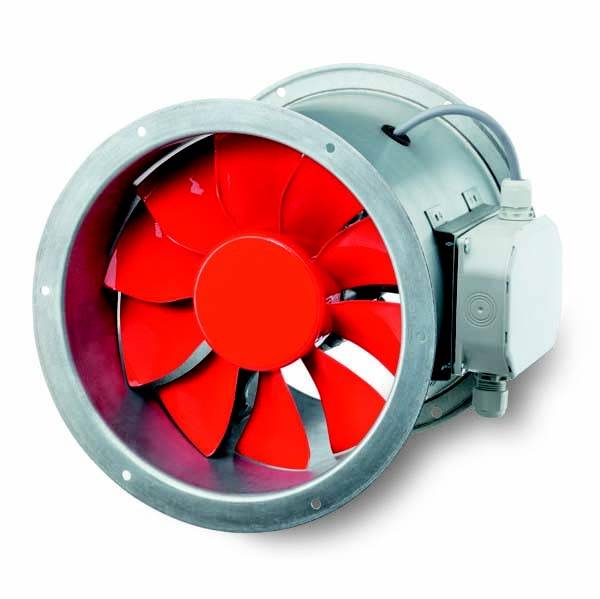

Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with high performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reversible.
This text is machine translated.
