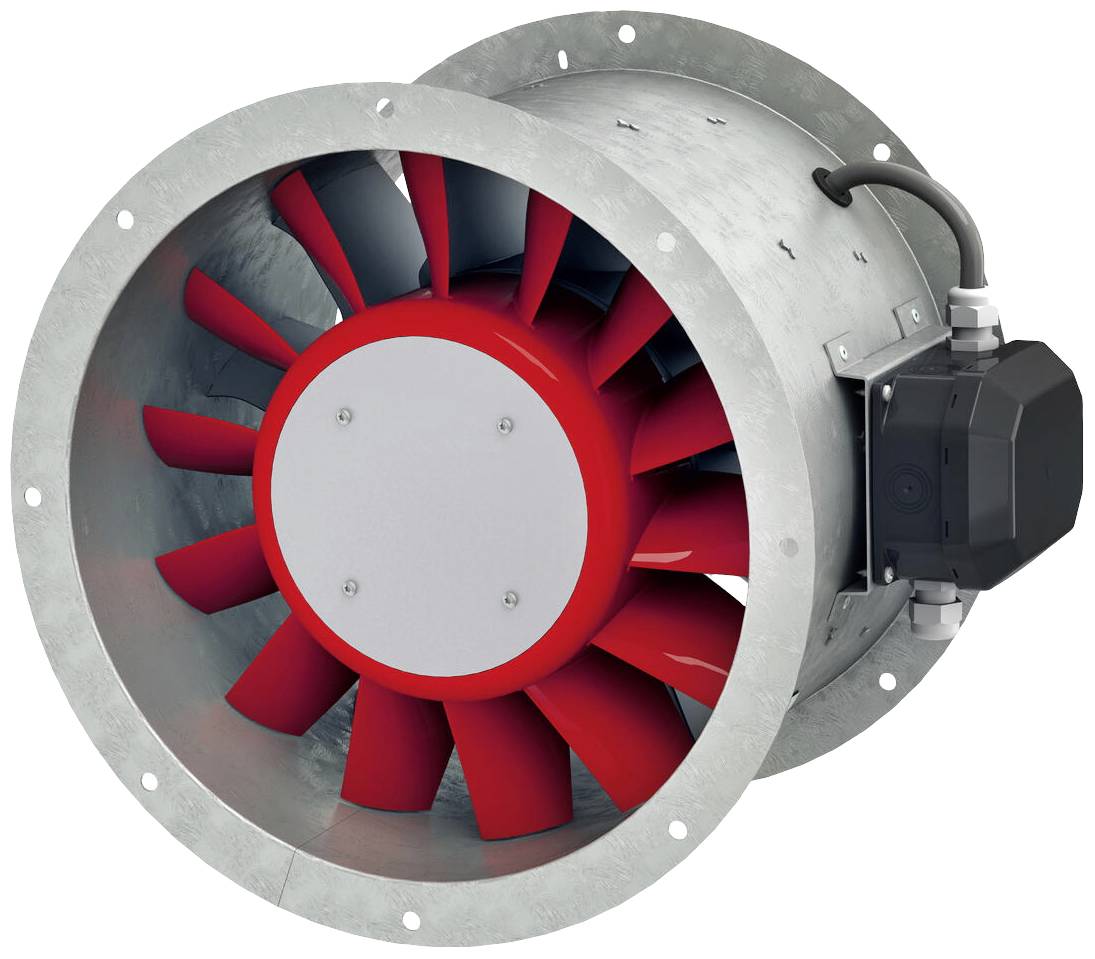

Helios Ventilatoren 2280 Duct extractor fan 230 V 6000 m³/h 400 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 6000 m³/h.
- Connection voltage 230 V
- Power consumption 0.6 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP54
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length 330 mm.
- Diameter of housing 465 mm
- Channel diameter 400 mm
- Connection: Flange
- Product type
Duct extractor fan
- Nominal voltage
230 V
0.600 kW
- Air flow rate
6000 m³/h
- Suitable for pipe Ø
400 mm
- Min. temperature
60 °C
- Max. temperature
60 °C
IP54
- Material
Steel
- Dim
(L x W) 330 mm x 465 mm
- Width
465 mm
- Length
330 mm
- Depth
330 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161571 Helios Ventilatoren 2280 Duct extractor fan 230 V 6000 m³/h 400 mm
Description
Mid-pressure pipe fan with cylindrical tube shell, flange on both sides, directly driven. Cylindrical tube made of galvanized steel plate, with flange shaped on both sides, shown in hole pattern according to DIN 24155 Bl.3 with integrated guide wheel. Axial load wheel made of plastic with 14 spatially curved blades. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, not reversible.
