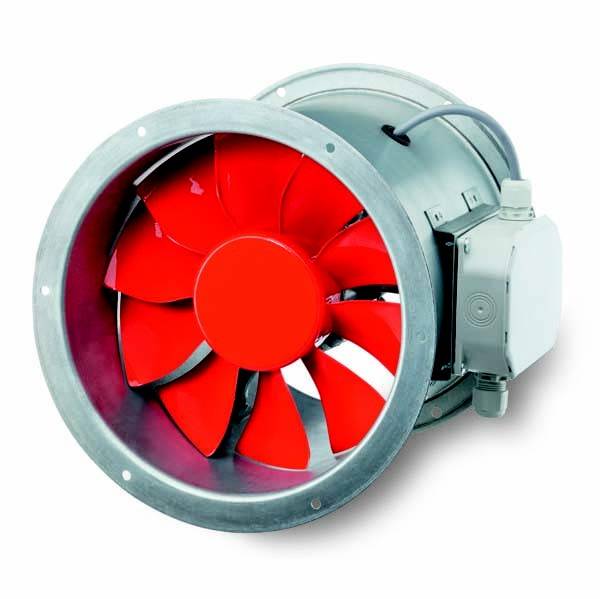

Helios Ventilatoren 233 In-line extractor 400 V 8200 m³/h 500 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 8200 m³/h.
- Connection voltage 400 V
- Power consumption: 0.62 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP55
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: Yes
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length 330 mm.
- Diameter of housing 565 mm
- Channel diameter 500 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
400 V
- Current consumption
620 W
620 W
- Air flow rate
8200 m³/h
- Suitable for pipe Ø
500 mm
IP55
- Material
Steel
- Dim
(Ø x L) 500 mm x 330.00 mm
- Length
330.00 mm
- Depth
330 mm
- (Ø)
500 mm
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3164528 Helios Ventilatoren 233 In-line extractor 400 V 8200 m³/h 500 mm
Description
Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with high performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit motors controlled by voltage reduction Speed, thermal contacts, closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
This text is machine translated.
