Helios Ventilatoren 2660 Radial extractor 230 V 110 m³/h 80 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Mounting type: Wall-/pipe mounting
- Housing material: Plastic
- Colour: white
- Volume flow 110 m³/h
- Protection class (IP) IP54
- Nominal width 80 mm
- Composition: Standard
- Design: Radial
- Direction: Ventilation
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Radial extractor
- Nominal voltage
230 V
- Air flow rate
110 m³/h
- Suitable for pipe Ø
80 mm
IP54
- Factory colour
White
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161460 Helios Ventilatoren 2660 Radial extractor 230 V 110 m³/h 80 mm
Description

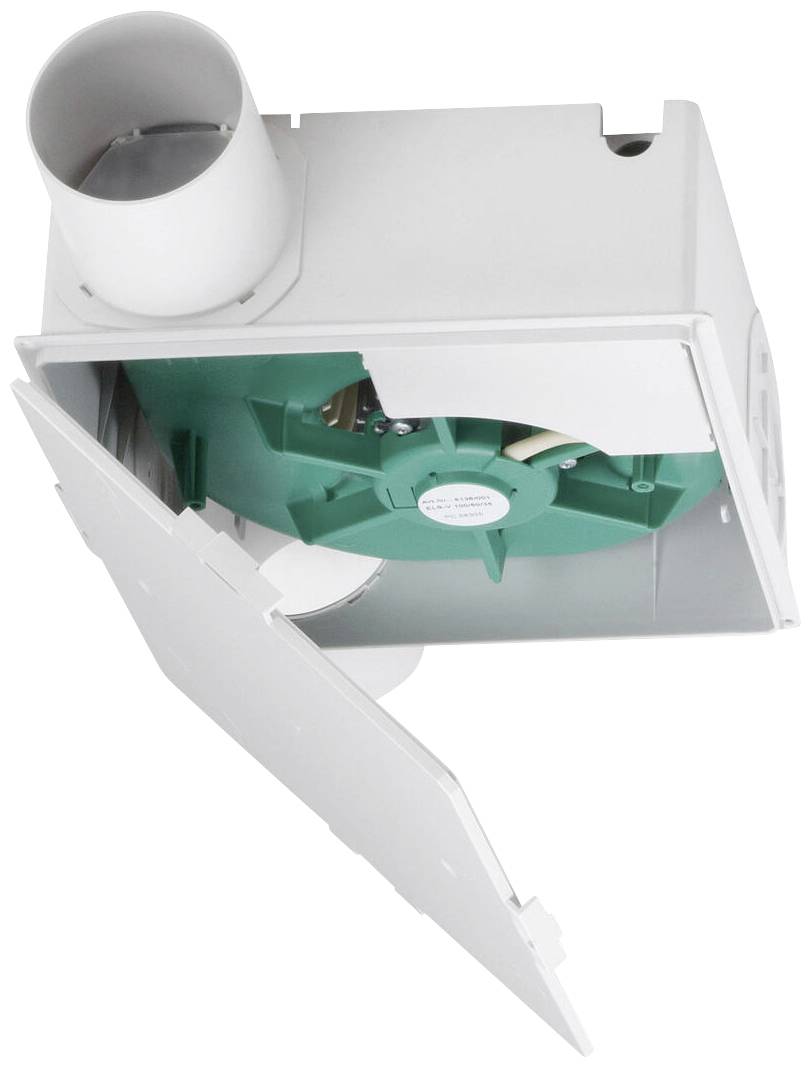

Flat radial tube fan SlimVent 80, with 3 power settings 110/65/35 m³/h volume flow. Suitable for ventilation of damp rooms, toilets, etc. in industry, trade and living areas. Flat housing in compact design made of high-quality, impact-resistant plastic. Delivery as standard suction and pressure side with connection supports for DN 80. Plastic cover for removal of the spiral housing easily removable, for cleaning and revision. Wheel: Spiral housing with aerodynamic and acoustic optimized radial impeller, high pressure reserve and low noise level. Drive: Maintenance-free, closed, ball-bearing energy-saving motor with thermal overload protection in the winding. Control: Comfortable through 3 power settings. The medium or small power stage can be directly connected for continuous operation and switched by means of DSEL 2 (Part No.: 1306). Manual control of all three levels by means of DSEL 3 (Part No.: 1611). The SV 80 can only be operated once. The speed level can be selected as desired.
