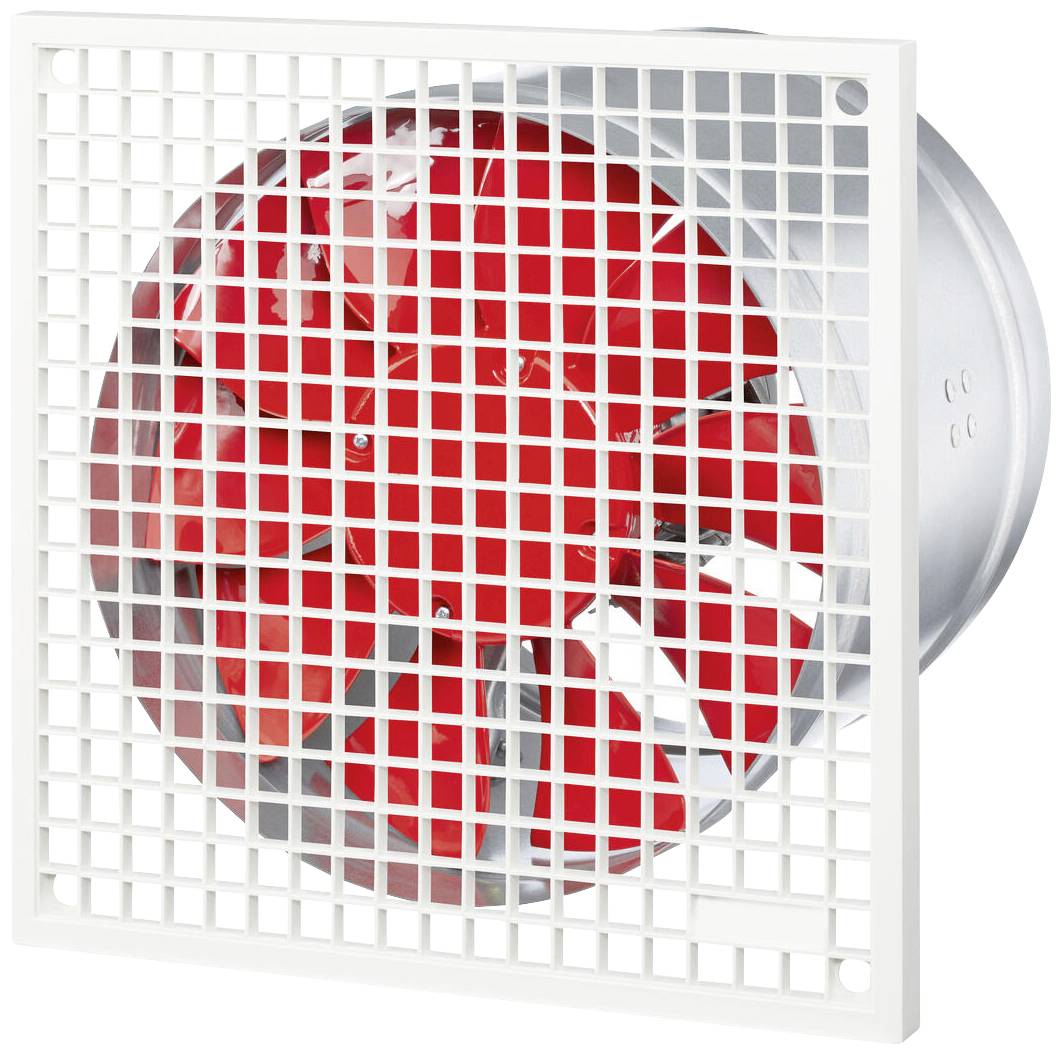

Helios Ventilatoren 346 In-line extractor 400 V 2060 m³/h 315 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -20..60°C
- Volume flow 2060 m³/h
- Speed 1445 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 315 mm
- Shutter flap: Without
- Product type
In-line extractor
- Nominal voltage
400 V
- Air flow rate
2060 m³/h
- Suitable for pipe Ø
315 mm
IP55
- Type
Ventilation
- Operating voltage
400 V
- Max. temperature
60 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161534 Helios Ventilatoren 346 In-line extractor 400 V 2060 m³/h 315 mm
Description
Axial high-power fan tube sleeve, cylindrical, smooth ends, directly driven. Pipe sleeve made of galvanized steel plate with two reinforcing surround and protective plastic grids. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
