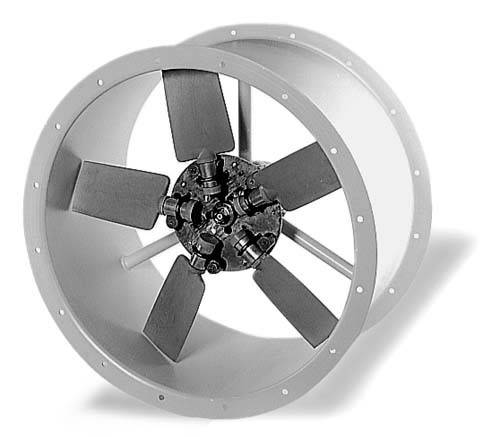

Helios Ventilatoren 380 In-line extractor 230 V 8130 m³/h 560 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 8130 m³/h.
- Connection voltage 230 V
- Power consumption 0.27 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP54
- Max. Air temperature 40°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length: 500 mm
- Diameter of housing 640 mm
- Channel diameter 560 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
270 W
270 W
- Air flow rate
8130 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
560 mm
IP54
- Material
Steel
- Dim
(Ø x L) 560 mm x 500.00 mm
- Length
500.00 mm
- Depth
500 mm
- (Ø)
560 mm
- Operating voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161794 Helios Ventilatoren 380 In-line extractor 230 V 8130 m³/h 560 mm
Description
Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reversible.
