Helios Ventilatoren 387 In-line extractor 400 V 12250 m³/h 560 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 12250 m³/h
- Speed 1365 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 560 mm
- Shutter flap: Without
- Product type
In-line extractor
- Nominal voltage
400 V
- Air flow rate
12250 m³/h
- Suitable for pipe Ø
560 mm
IP55
- Type
Ventilation
- Operating voltage
400 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161343 Helios Ventilatoren 387 In-line extractor 400 V 12250 m³/h 560 mm
Description

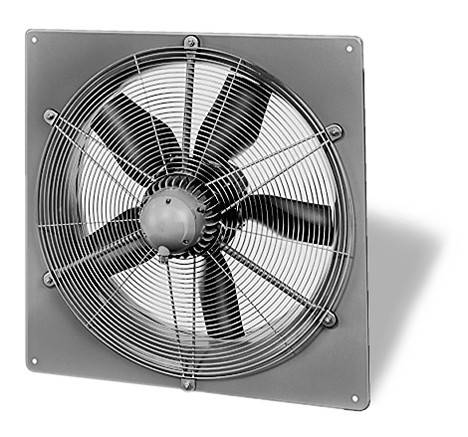

Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors with frequency converter Speed controllable (please specify when ordering!) Closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
