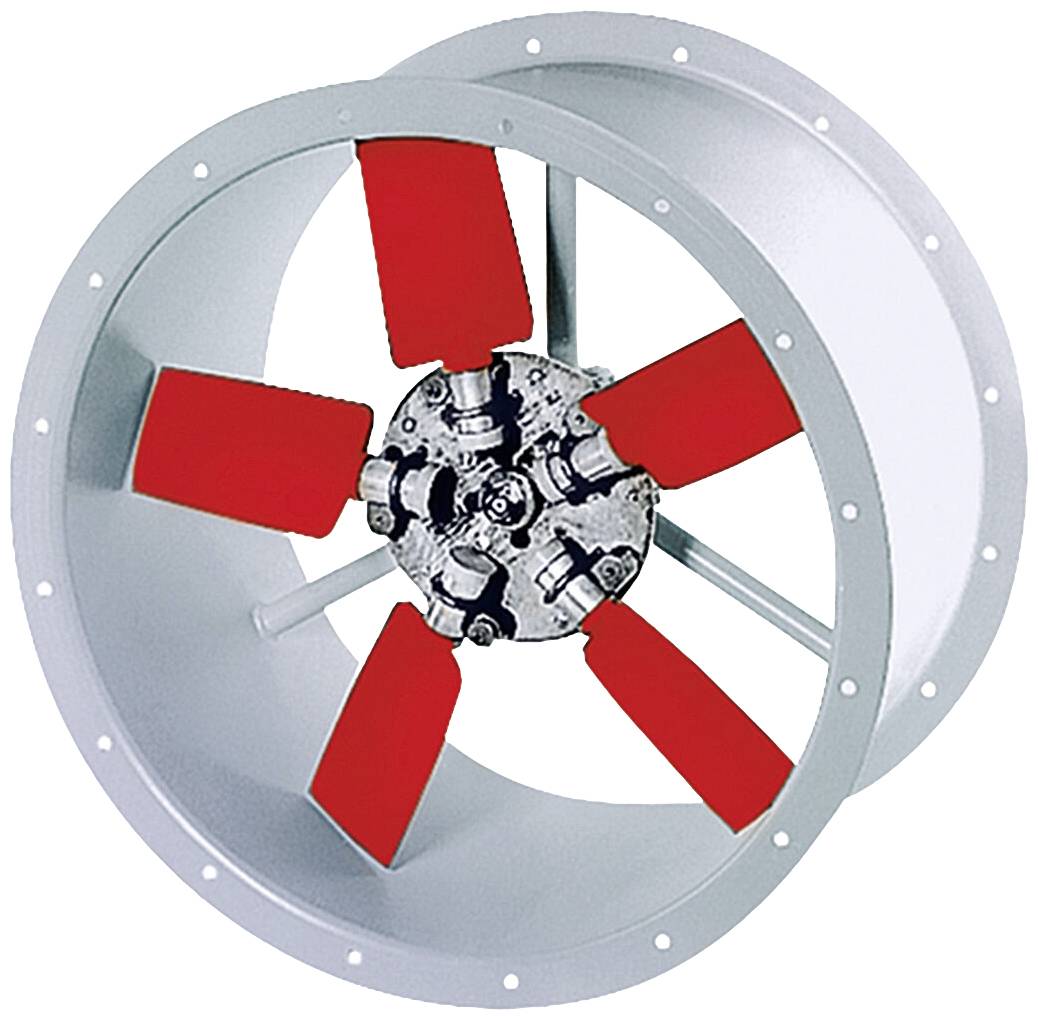

Helios Ventilatoren 4875 Axial fan 0 V 10330 m³/h 630 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 10330 m³/h.
- Connection voltage 230 V
- Power consumption 0.45 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 40°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length: 500 mm
- Diameter of housing 710 mm
- Channel diameter 630 mm
- Connection: Flange
- Product type
Axial fan
- Nominal voltage
0 V
0.45 kW
- Air flow rate
10330 m³/h
- Suitable for pipe Ø
630 mm
- Ventilation features
Adjustable
IP44
- Material
Steel
- Dim
(Ø x L) 710 mm x 500.00 mm
- Depth
500 mm
- (Ø)
710 mm
- Length
500.00 mm
- Operating voltage
0 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161619 Helios Ventilatoren 4875 Axial fan 0 V 10330 m³/h 630 mm
Description
EC axial high performance fan Cylindrical tube made of galvanized sheet steel, with impeller enclosing on both sides formed flange, hole pattern according to DIN 24155, standard terminal box (protection class IP 54) on the outside of the pipe. Wheel with high performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Energy-saving, controllable EC external rotor motor in protection class IP 54 with the highest degree of efficiency. Maintenance and radio interference-free, excellent electromagnetic compatibility (EMC), with ball bearings. Integrated electronic temperature monitoring for EC motor and electronics. Continuously variable control using the rotary speed potentiometer. The control by three-stage switch or infinitely variable via universal control system or electronic differential pressure/temperature controller is possible
