Helios Ventilatoren 5029 Axial fan 0 V 7810 m³/h 630 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..60°C
- Volume flow 7810 m³/h
- Speed 710 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 630 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
710 U/min
- Air flow rate
7810 m³/h
- Suitable for pipe Ø
630 mm
- Ventilation features
Adjustable
IP55
- Material
Steel
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
60 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161339 Helios Ventilatoren 5029 Axial fan 0 V 7810 m³/h 630 mm
Description

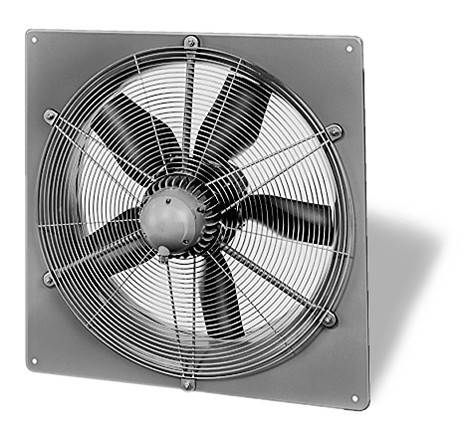

Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors controlled by voltage reduction Speed, thermal contacts, closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
This text is machine translated.
This text is machine translated.
