Helios Ventilatoren 5032 Axial fan 0 V 15990 m³/h 630 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 15990 m³/h
- Speed 1400 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 630 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1400 U/min
- Air flow rate
15990 m³/h
- Suitable for pipe Ø
630 mm
- Ventilation features
Adjustable
IP55
- Material
Fibreglass reinforced polyester
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161363 Helios Ventilatoren 5032 Axial fan 0 V 15990 m³/h 630 mm
Description

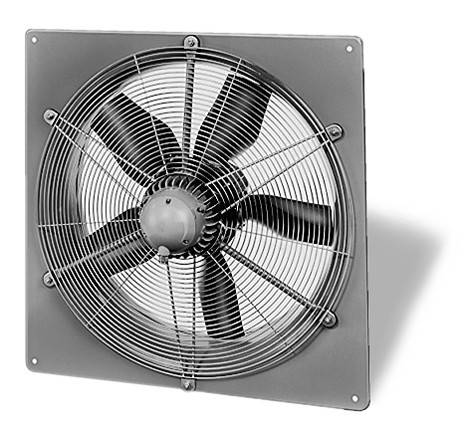

Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
