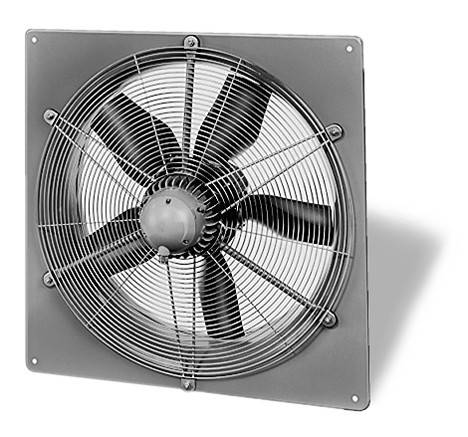

Helios Ventilatoren 5056 Axial fan 0 V 16210 m³/h 630 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Medium temperature: -30..60°C
- Volume flow 16210 m³/h
- Speed 1325 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 630 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1325 U/min
- Air flow rate
16210 m³/h
- Suitable for pipe Ø
630 mm
- Ventilation features
Adjustable
IP55
- Material
GRP
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
60 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161375 Helios Ventilatoren 5056 Axial fan 0 V 16210 m³/h 630 mm
Description
Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reversible.
