Helios Ventilatoren 5599 Axial fan 0 V 13330 m³/h 710 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 13330 m³/h
- Speed 690 1 rpm
- Protection class (IP) IP54
- Design: Ventilation and ventilation
- Nominal width 710 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
690 U/min
- Air flow rate
13330 m³/h
- Suitable for pipe Ø
710 mm
- Ventilation features
Adjustable
IP54
- Material
Thermoplastic
- Dim
(Ø) 710 mm
- (Ø)
710 mm
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161700 Helios Ventilatoren 5599 Axial fan 0 V 13330 m³/h 710 mm
Description

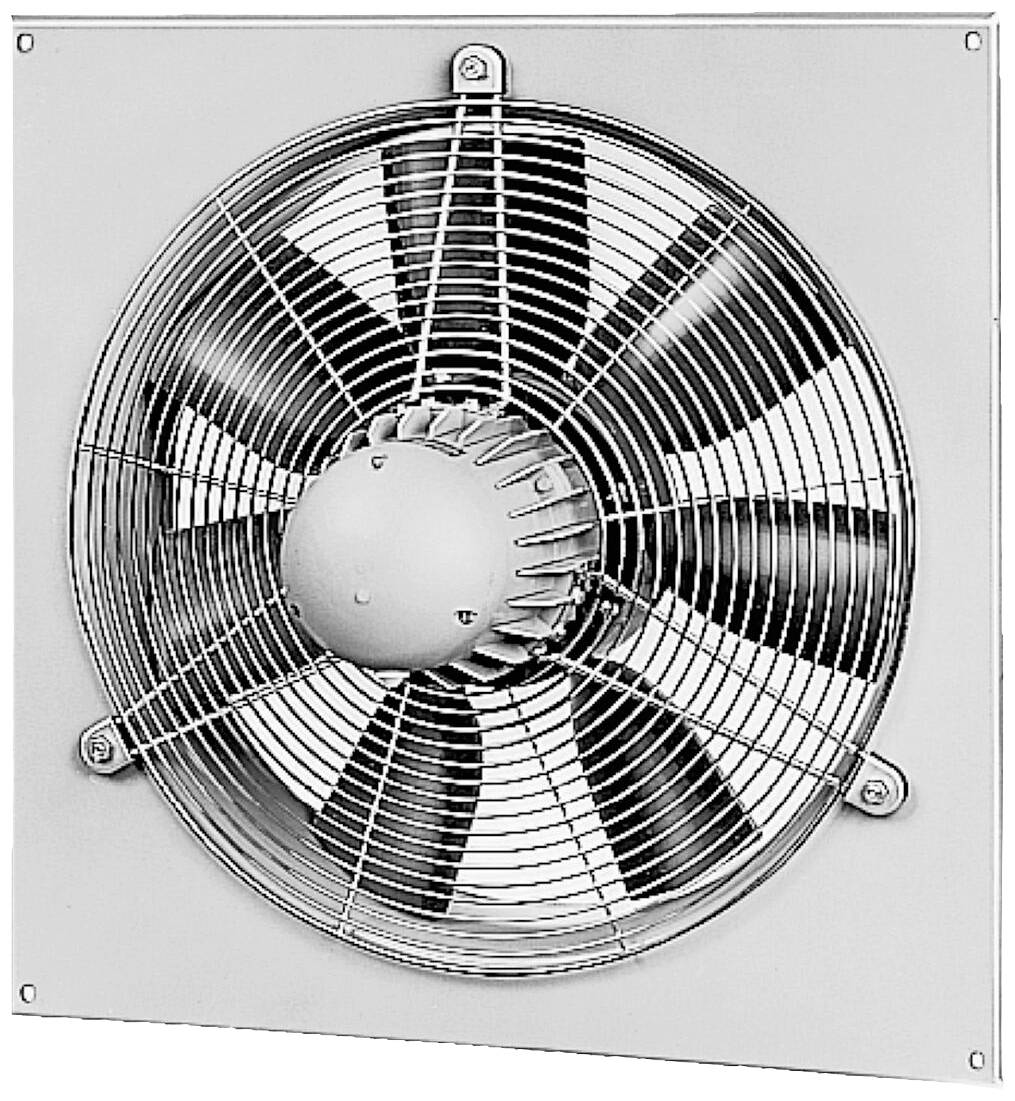

Axial high performance fan blades with standstill adjustable blades, square mounting plate, influx nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors with frequency converter Speed controllable (please specify when ordering!) Closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
