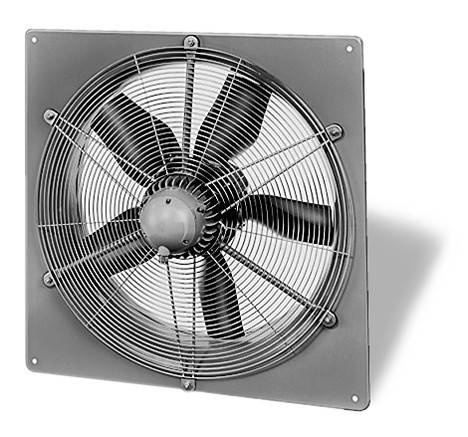

Helios Ventilatoren 5605 Axial fan 0 V 23280 m³/h 710 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 23280 m³/h
- Speed 1340 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 710 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1340 U/min
- Air flow rate
23280 m³/h
- Suitable for pipe Ø
710 mm
- Ventilation features
Adjustable
IP55
- Material
Steel
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161801 Helios Ventilatoren 5605 Axial fan 0 V 23280 m³/h 710 mm
Description
Axial high performance fan blades with standstill adjustable blades, square mounting plate, influx nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors with a double-turn star delta connection, closed design, maintenance-free, sealed and low-noise ball bearings with long-term lubrication.
