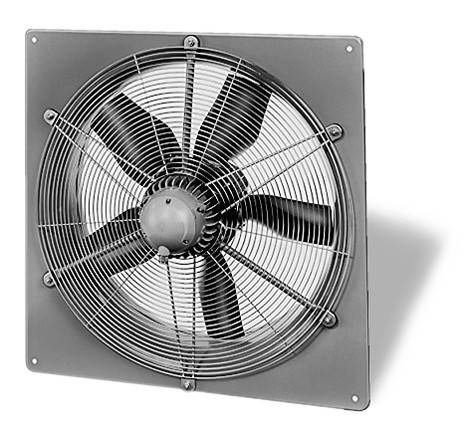

Helios Ventilatoren 5606 Axial fan 0 V 26420 m³/h 710 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 26420 m³/h
- Speed 1445 1 rpm
- Protection class (IP) IP54
- Design: Ventilation and ventilation
- Nominal width 710 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1445 U/min
- Air flow rate
26420 m³/h
- Suitable for pipe Ø
710 mm
- Ventilation features
Adjustable
IP54
- Material
GRP
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161405 Helios Ventilatoren 5606 Axial fan 0 V 26420 m³/h 710 mm
Description
Axial high performance fan blades with standstill adjustable blades, square mounting plate, influx nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors with frequency converter Speed controllable (please specify when ordering!) Closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
