Helios Ventilatoren 5612 Axial fan 0 V 29020 m³/h 710 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..40°C
- Volume flow 29020 m³/h
- Speed 1440 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 710 mm
- Shutter flap: Without
- Product type
Axial fan
- Nominal voltage
0 V
- Rotational speed
1440 U/min
- Air flow rate
29020 m³/h
- Suitable for pipe Ø
710 mm
- Ventilation features
Adjustable
IP55
- Material
Thermoplastic
- Type
Ventilation
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161803 Helios Ventilatoren 5612 Axial fan 0 V 29020 m³/h 710 mm
Description

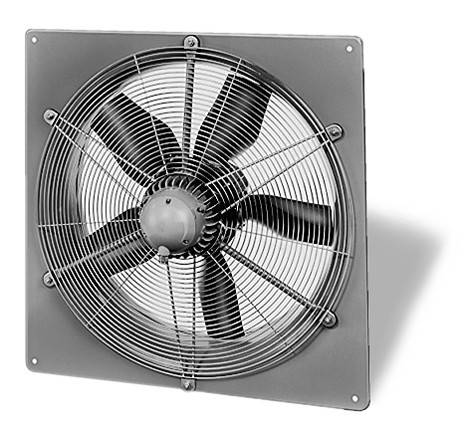

Axial high performance fan blades with standstill adjustable blades, square mounting plate, influx nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
