Helios Ventilatoren 5688 Radial extractor 400 V 5000 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Material of housing: Steel sheet
- Volume flow 5000 m³/h
- Rated output: 1.53 kW
- Protection type (IP) IP44
- Direction: Radial
- Weight: 54000 g.
- Channel width 700 mm
- Canal height 400 mm
- Medium temperature: -20..60°C
- Product type
Radial extractor
- Nominal voltage
400 V
1.530 kW
- Air flow rate
5000 m³/h
- Min. temperature
-20 °C
- Max. temperature
60 °C
IP44
- Material
Steel plate
- Weight
54000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161753 Helios Ventilatoren 5688 Radial extractor 400 V 5000 m³/h
Description

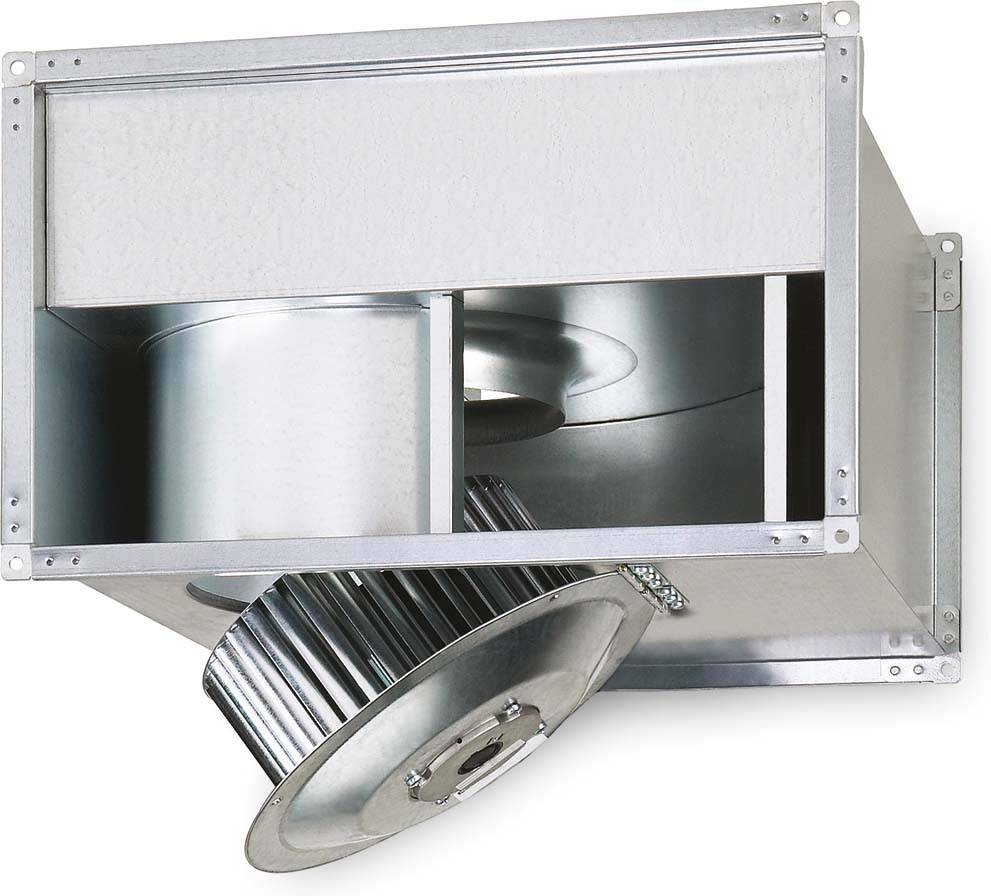

Duct radial fan with forward curved blades for direct mounting in a rectangular duct system. Motor-running wheel unit can be swiveled. Casing made of zinc-plated sheet steel with standardized channel flange profiles on both sides, space-saving design, service-friendly by swinging motor-impeller unit. Forward-bent drum wheel made of zinc-coated steel, good degree of efficiency, low noise, aerodynamically optimized spiral housing, inflow via nozzle. Motorized propeller unit dynamically balanced. Drive: Three-phase external rotor motor, built-in thermal contacts led out on clamping board, closed design, speed can be controlled by means of 5-step transformer or electronically (continuously variable) as well as control by means of Helios frequency converter with all-pin sine filter is possible, winding with moisture protection impregnation, maintenance-free, sealed, low-noise ball bearings with long-term lubrication. Mains connection at pre-mounted terminal box (IP54).
