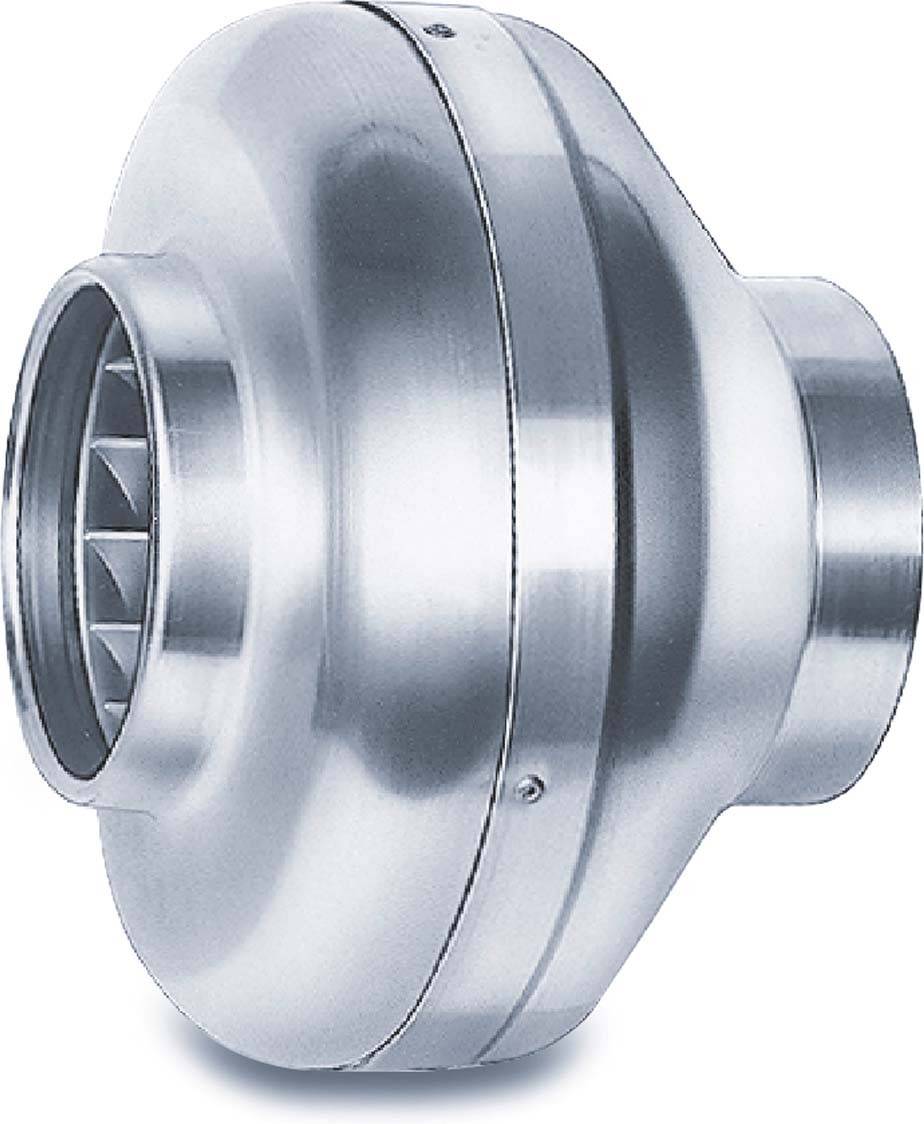

Helios Ventilatoren 5804 Radial extractor 230 V 344 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 344 m³/h.
- Connection voltage 230 V
- Power consumption 0.093 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length: 188 mm
- Diameter of housing 243 mm
- Channel diameter 100 mm
- Connection: Flange
- Product type
Radial extractor
- Nominal voltage
230 V
0.093 kW
- Rotational speed
3640 U/min
- Air flow rate
344 m³/h
- Suitable for pipe Ø
100 mm
- Min. temperature
60 °C
- Max. temperature
60 °C
- Noise emission (max.)
54 dBa
IP44
- Material
Steel
- Weight
2.5 kg
- Length
188 mm
- Depth
188 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161437 Helios Ventilatoren 5804 Radial extractor 230 V 344 m³/h 100 mm
Description
EC radial duct fan for direct mounting in pipe system. Casing made of galvanized steel plate with round connection pieces tuned to standard pipes. Radial impeller with backward curved blades made of plastic. Pressed directly on the motor and dynamically balanced as a unit. Low-noise, high degree of efficiency. Energy-saving, controllable EC external rotor motor in protection class IP 54. Free of maintenance and radio interference and ball bearings. Integrated electronic temperature monitoring for EC engine and electronics . Infinitely variable speed control with potentiometer or variable speed control with universal control system. Connection via standard terminal box (IP54) on the outside of the housing.
