Helios Ventilatoren 6016 Fan module 400 V 2960 m³/h 280 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage 400 V
- Frequency: 50 Hz
- Power consumption: 0.95 kW
- Material of housing: Steel
- Air quantity unloaded: 2960 m³/h.
- Medium temperature: -20..40°C
- Protection class (IP) IP54
- Nominal diameter of channel 280 mm
- Location: Other
- Device group according to Directive 94/9/EC: II.
- Temperature class according to directive 94/9/EC: T3
- Product type
Fan module
- Nominal voltage
400 V
0.950 kW
- Air flow rate
2960 m³/h
- Suitable for pipe Ø
280 mm
- Min. temperature
-20 °C
- Max. temperature
40 °C
IP54
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161262 Helios Ventilatoren 6016 Fan module 400 V 2960 m³/h 280 mm
Description

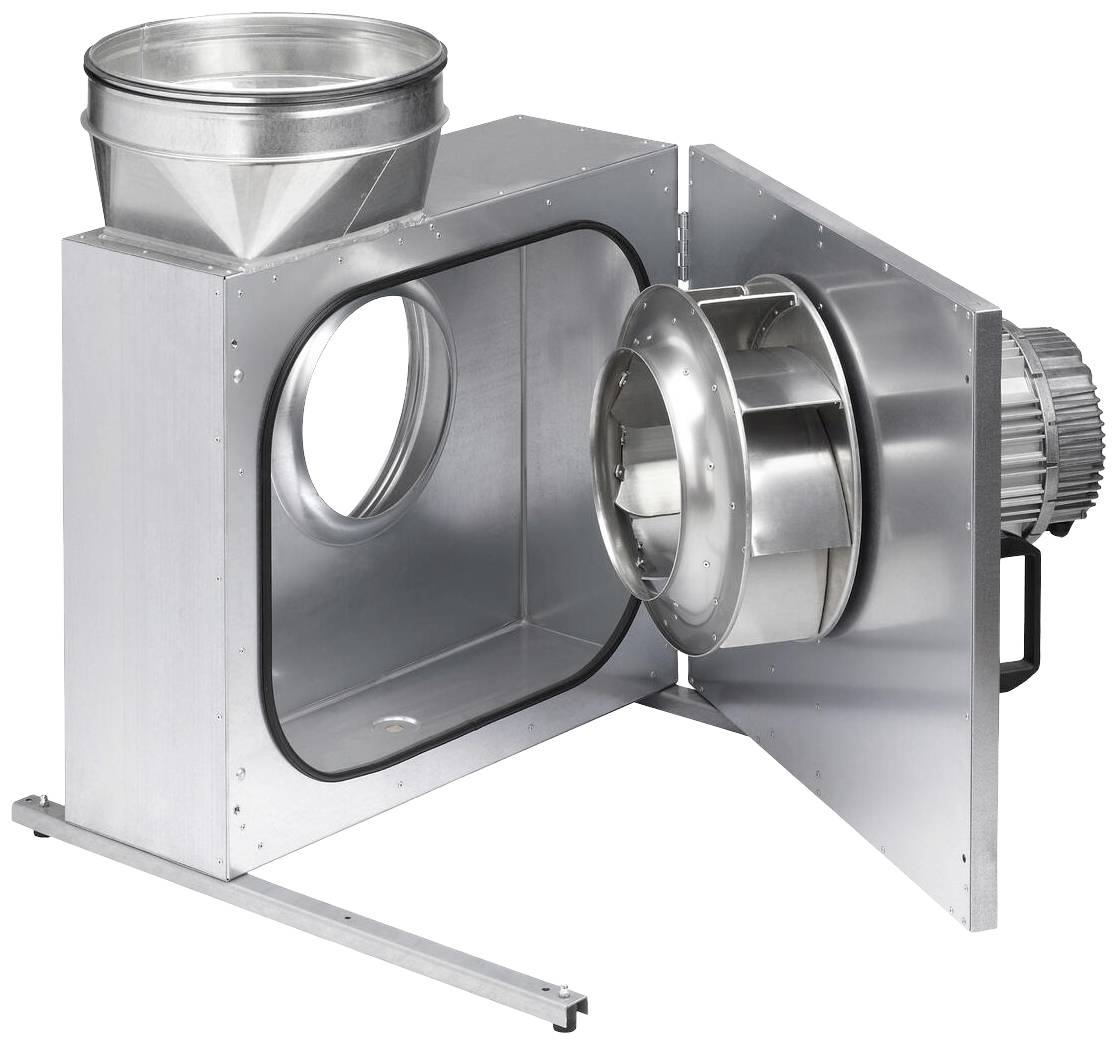

Noise-enclosed radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 50 mm thick mineral wool insulation material plates. Suction and pressure-side pipe connection nozzle with rubber lip seal. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. High-power radial impeller with forward-bent blades made of zinc-plated steel plate. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication, not adjustable. Ex design according to ATEX.
