Helios Ventilatoren 6036 Duct extractor fan 230 V 2050 m³/h 315 mm
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Plastic
- Air quantity unloaded: 2050 m³/h.
- Connection voltage 230 V
- Power consumption 0.29 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 50°C.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length: 448 mm
- Diameter of housing 359 mm
- Channel diameter 315 mm
- Connection: Flange
- Product type
Duct extractor fan
- Nominal voltage
230 V
0.290 kW
- Air flow rate
2050 m³/h
- Suitable for pipe Ø
315 mm
- Min. temperature
50 °C
- Max. temperature
50 °C
IP44
- Material
Plastic
- Length
448 mm
- Depth
448 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161304 Helios Ventilatoren 6036 Duct extractor fan 230 V 2050 m³/h 315 mm
Description

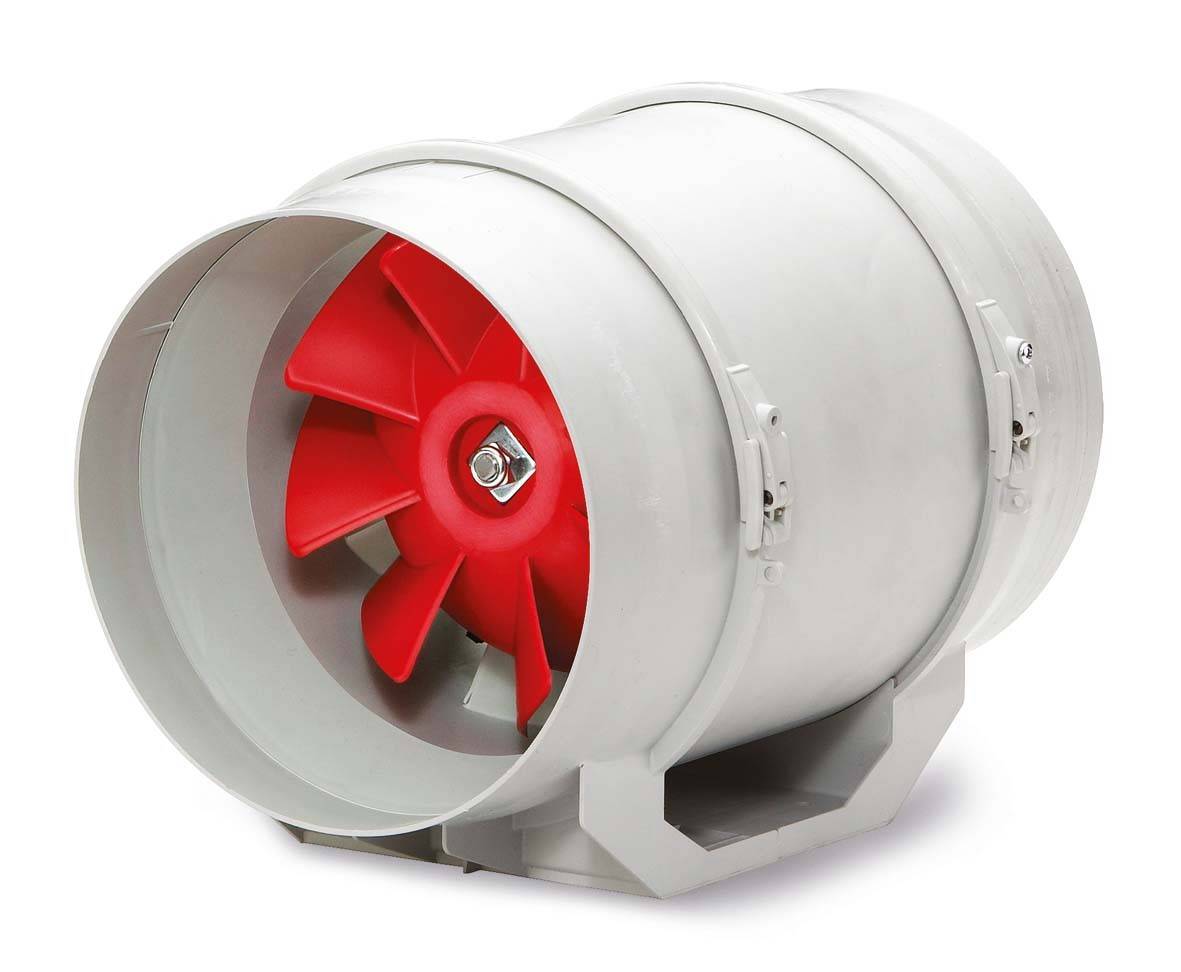

Swivel-out EC tubular fan with high pressure and volume output, for space-saving installation in the duct. Housing made of impact-resistant and corrosion-resistant plastic, light gray color, with pre-formed mounting console for easy installation on wall or ceiling as well as intake and exhaust nozzles matching the standard tube diameters. By loosening the mounting brackets, the fan unit with the terminal box can be rotated to any position and can be removed for maintenance and cleaning. Supplied with rawlplugs and screws. Optimised wheel for high pressure and volume performance, made from high-quality plastic. Dynamically balanced for quiet running. Drive by energy-saving, controllable EC-external rotor motor with moisture protection in protection type IP44 with highest efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Infinitely variable speed control with potentiometer PU / PA. Connection via spacious terminal box (IP44) on the outside of the casing, rotatable in every position.
