Helios Ventilatoren 6061 In-line extractor 230 V 550 m³/h 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Plastic
- Air quantity unloaded: 550 m³/h.
- Connection voltage 230 V
- Power consumption: 0.116 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 60°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length: 551 mm
- Diameter of housing 214 mm
- Channel diameter 160 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
116 W
116 W
- Air flow rate
550 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
160 mm
IP44
- Factory colour
Light grey
- Material
Plastic
- Dim
(Ø x L) 160 mm x 551.00 mm
- Length
551.00 mm
- Depth
551 mm
- (Ø)
160 mm
- Operating voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161502 Helios Ventilatoren 6061 In-line extractor 230 V 550 m³/h 160 mm
Description

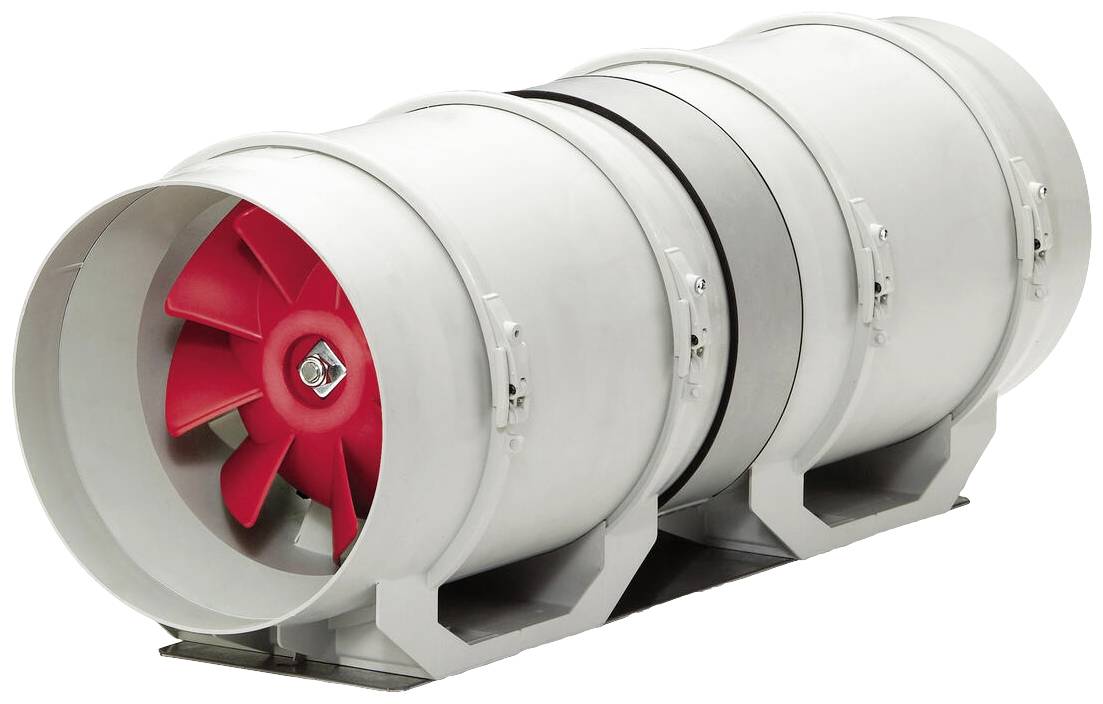

Two-stage fan unit. Two swivel MV fans connected in series are connected by means of a sleeve and mounted on a common base plate. Supplied as assembly kit. The print output is approximately doubled through series operation. Housing made of impact-resistant and corrosion-resistant plastic, light gray color, with pre-formed mounting console for easy installation on wall or ceiling as well as intake and exhaust nozzles matching the standard tube diameters. By loosening the mounting brackets, the fan unit with the terminal box can be rotated to any position and can be removed for maintenance and cleaning. Supplied with rawlplugs and screws. Semi-axial impeller, eight spatially curved blades made of thermoplastic. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Closed, ball-bearing capacitor motor with moisture protection, insulation class F, for continuous operation. Maintenance and radio free Motor protection by thermal overload protection in the winding.
