Helios Ventilatoren 6068 In-line extractor 230 V 1100 m³/h 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Plastic
- Air quantity unloaded: 1100 m³/h.
- Connection voltage 230 V
- Power consumption: 0.116 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 60°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole switch-able: No.
- Length 300 mm
- Channel diameter 160 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
116 W
116 W
- Air flow rate
1100 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
160 mm
IP44
- Factory colour
Light grey
- Material
Plastic
- Dim
(Ø x L) 160 mm x 300.00 mm
- Length
300.00 mm
- Depth
300 mm
- (Ø)
160 mm
- Operating voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161508 Helios Ventilatoren 6068 In-line extractor 230 V 1100 m³/h 160 mm
Description

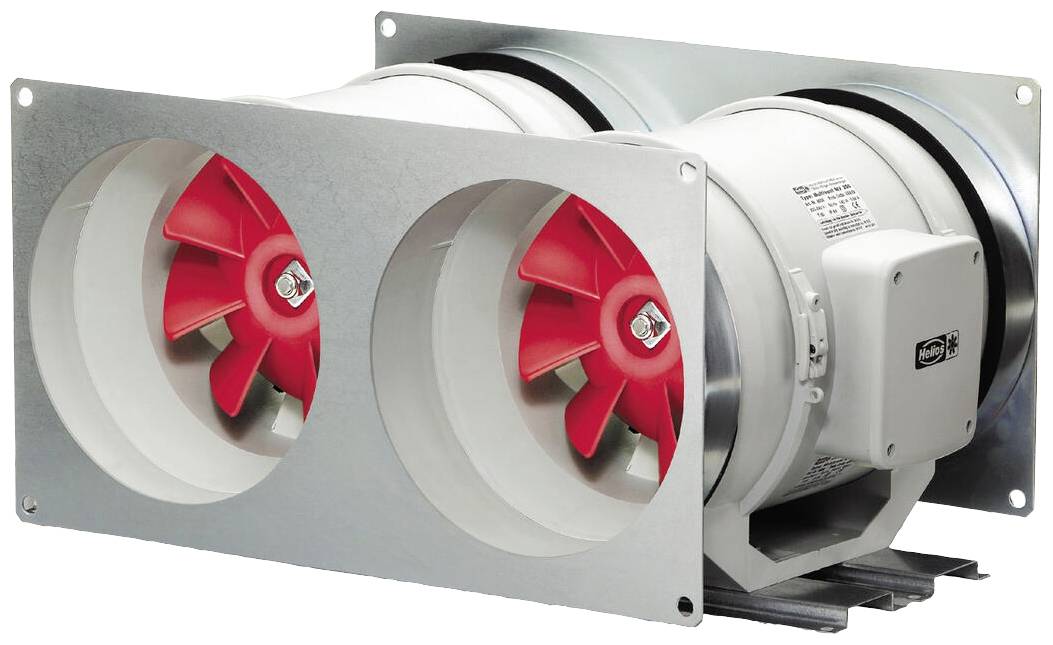

Parallel twin unit. Two swivel-mounted, parallel MV fans are connected to each other by means of a rectangular channel connection plate fitted on the suction and pressure side and bolted with mounting rails. Supplied as assembly kit. With parallel operation (common control) the volume output is doubled. Housing made of impact-resistant and corrosion-resistant plastic, light gray color, with pre-formed mounting console for easy installation on wall or ceiling as well as intake and exhaust nozzles matching the standard tube diameters. By loosening the mounting brackets, the fan unit with the terminal box can be rotated to any position and can be removed for maintenance and cleaning. Supplied with rawlplugs and screws. Semi-axial impeller, eight spatially curved blades made of thermoplastic. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Closed, ball-bearing capacitor motor with moisture protection, insulation class F, for continuous operation. Maintenance and radio free Motor protection by thermal overload protection in the winding.
