Helios Ventilatoren 6124 Radial extractor 230 V 420 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 420 m³/h.
- Connection voltage 230 V
- Power consumption 0.11 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection type (IP) IP44
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length: 314 mm
- Channel diameter 100 mm
- Connection: Flange
- Product type
Radial extractor
- Nominal voltage
230 V
0.110 kW
- Air flow rate
420 m³/h
- Suitable for pipe Ø
100 mm
- Min. temperature
60 °C
- Max. temperature
60 °C
IP44
- Material
Steel
- Length
314 mm
- Depth
314 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161482 Helios Ventilatoren 6124 Radial extractor 230 V 420 m³/h 100 mm
Description

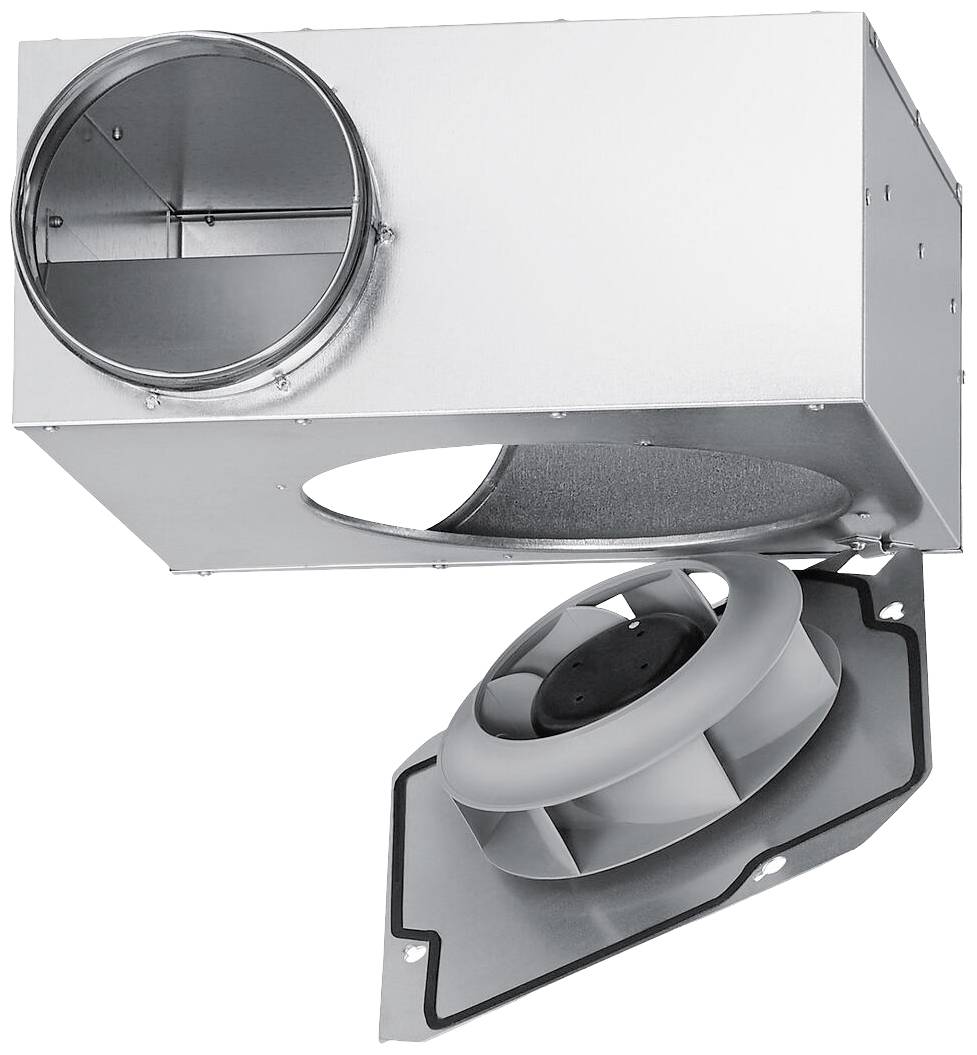

EC Radial tubular fan flat and compact design for direct buffering in pipe systems. Flat housing in compact design made of zinc-plated steel sheet. Standard delivery on suction and pressure side with connection supports and lip seal for standard tube diameter. Motor-impeller unit can be swiveled for cleaning and revision. Wheel: Energy-saving radial impeller with backward curved blades made of high-quality plastic. Dynamically balanced for quiet running. Drive by energy-saving, controllable EC external rotor motor in protection class IP44 with the highest degree of efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Continuous speed control with potentiometer or continuous speed regulation with universal control system EUR-EC. Connection via standard terminal box (IP54) on the outside of the housing.
