Helios Ventilatoren 6136 Duct extractor fan 230 V 540 m³/h 160 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 540 m³/h.
- Connection voltage 230 V
- Power consumption: 0.12 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP54
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Length 400 mm
- Channel diameter 160 mm
- Connector: Slide-in
- Product type
Duct extractor fan
- Nominal voltage
230 V
0.120 kW
- Air flow rate
540 m³/h
- Suitable for pipe Ø
160 mm
- Min. temperature
60 °C
- Max. temperature
60 °C
IP54
- Material
Steel
- Length
400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161503 Helios Ventilatoren 6136 Duct extractor fan 230 V 540 m³/h 160 mm
Description

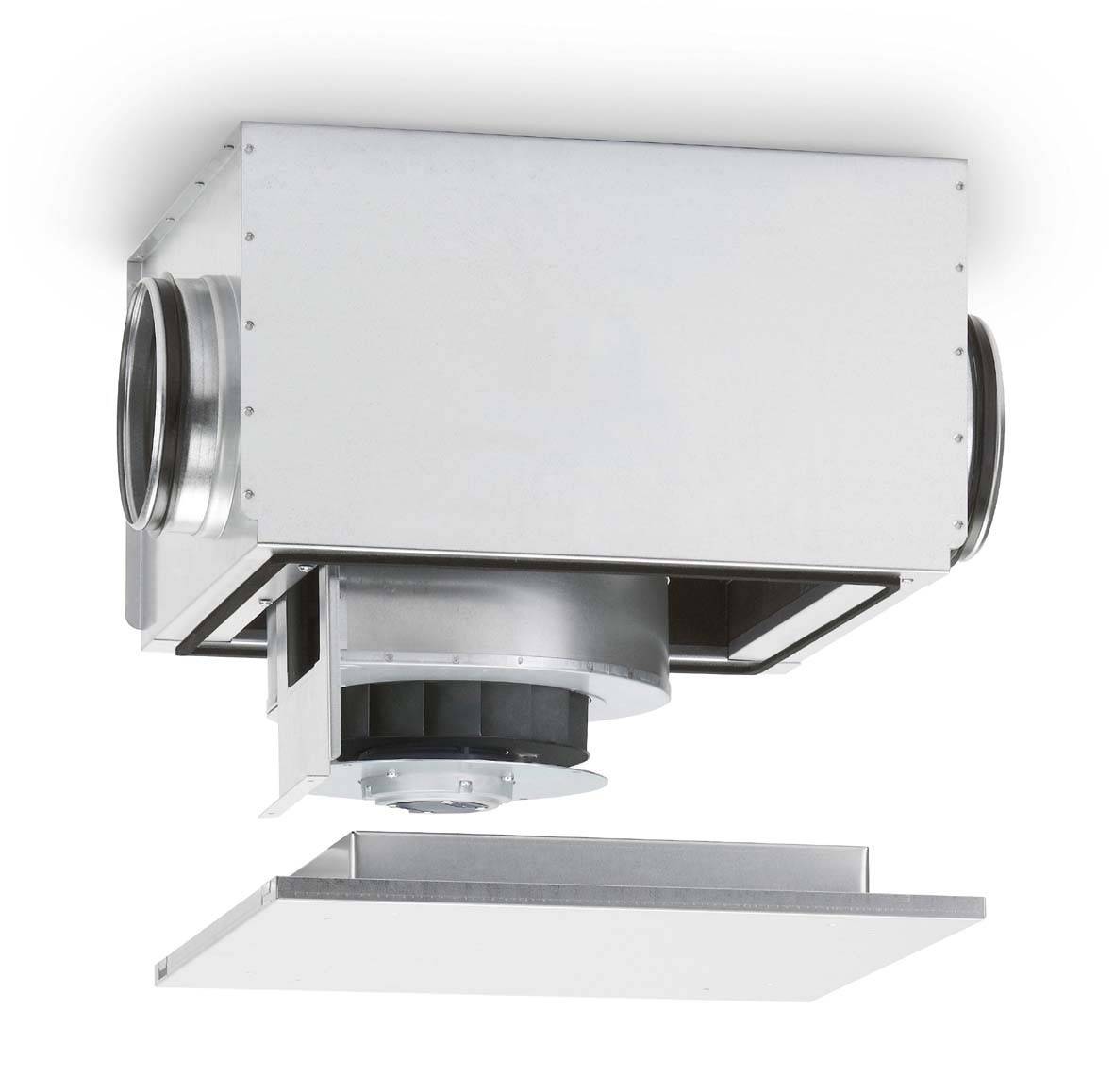

EC Radial pipe fan with noise-damped casing. Casing made of galvanized steel plate with round connection pieces tuned to standard pipes. Sound-absorbent perforated metal lining, deposited with 50mm thick mineral fiberboard. Removable lid Cooling compartment and housing spiral freely accessible. Motor and wheel can be pulled out. Wheel: Energy-saving radial impeller, curved forward in aerodynamic optimized spiral housing, galvanized steel plate. Dynamically balanced for quiet running. Drive by energy-saving, controllable EC external rotor motor in protection class IP54 with the highest degree of efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Continuous speed control with potentiometer or continuous speed regulation with universal control system EUR-EC. Connection to lead cables via standard terminal box (IP54).
