Helios Ventilatoren 6692 Duct extractor fan 400 V 3465 m³/h 400 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage 400 V
- Frequency: 50 Hz
- Power consumption: 0.25 kW
- Material of housing: Steel
- Air quantity unloaded: 3465 m³/h.
- Medium temperature: -20..40°C
- Protection class (IP) IP54
- Nominal diameter of channel 400 mm
- Mounting place: Pipe
- Device group according to Directive 94/9/EC: II.
- Temperature class according to directive 94/9/EC: T3
- Product type
Duct extractor fan
- Nominal voltage
400 V
0.250 kW
- Air flow rate
3465 m³/h
- Suitable for pipe Ø
400 mm
- Min. temperature
-20 °C
- Max. temperature
40 °C
IP54
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161668 Helios Ventilatoren 6692 Duct extractor fan 400 V 3465 m³/h 400 mm
Description

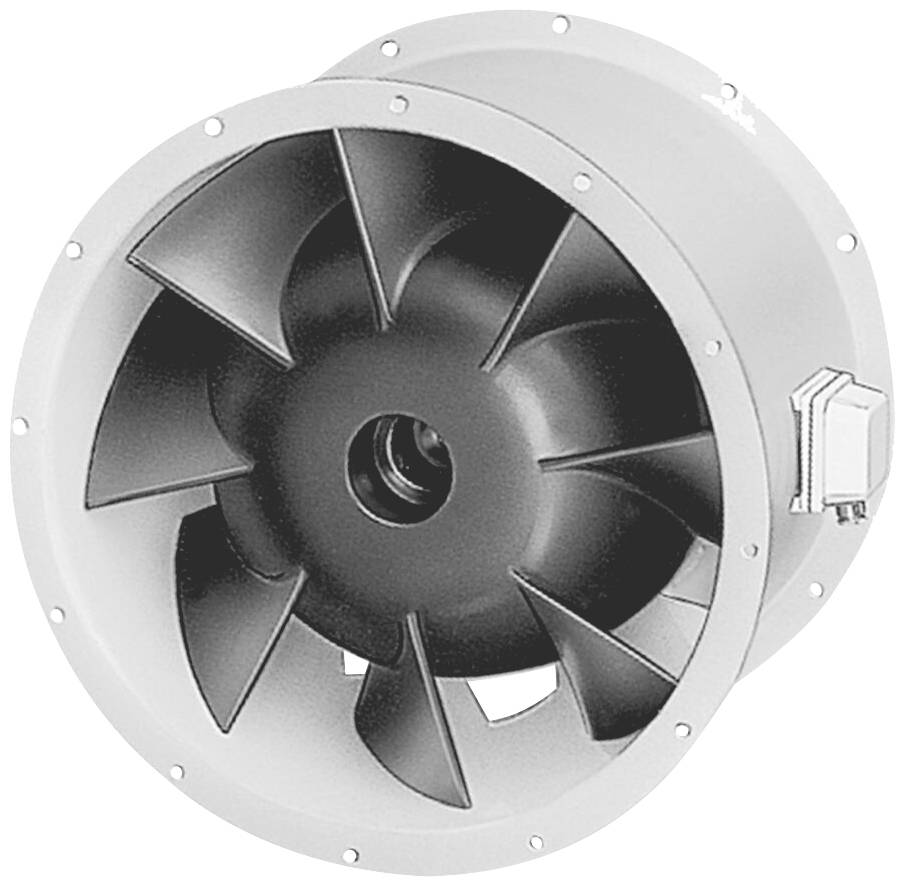

High-pressure pipe fan with cylindrical tube sleeve, flanges on both sides, directly driven, explosion-proof according to ATEX. Cylindrical tube made of galvanized steel plate, with flange shaped on both sides, drilled-hole pattern according to DIN 24155, built-in rectification wheel. Semi-axial impeller, eight spatially curved blades made of galvanized steel. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication, not adjustable. Ex design according to ATEX.
