Helios Ventilatoren 7177 Radial extractor 230 V 545 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Material of housing: Aluminium
- Surface protection housing: Other
- Self-activating cap integrated: No.
- Volume flow 545 m³/h
- Rated output: 34 W
- Medium temperature: -20..70°C
- Protection type (IP) IP44
- Nominal diameter of channel 200 mm
- Discharge direction: Horizontal
- Product type
Radial extractor
- Nominal voltage
230 V
34.000 W
- Air flow rate
545 m³/h
- Suitable for pipe Ø
200 mm
- Min. temperature
-20 °C
- Max. temperature
70 °C
IP44
- Material
Aluminium
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161516 Helios Ventilatoren 7177 Radial extractor 230 V 545 m³/h 200 mm
Description

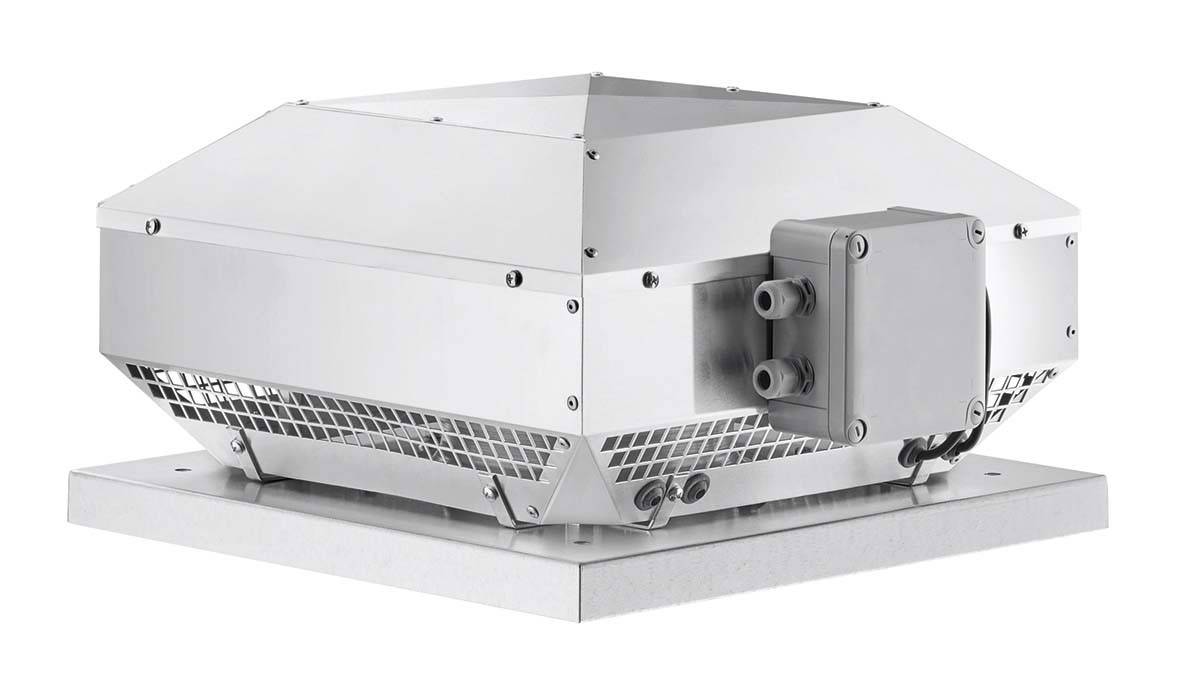

Horizontal blowing roof fan with efficiency-optimized aluminum casing and newly developed high-performance radial wheel. Case made from seawater resistant aluminum with integrated intrusion protection. Motor support plate and base plate with inlet nozzle made of galvanized steel. Base plate with threaded screws for attaching suction-side accessories (hole pattern according to DIN 24155, sheets. 3). Guards as standard on the discharge side according to DIN EN ISO 13857. High-power radial impeller with backward curved blades made of galvanized sheet steel. Dynamically weighted according to DIN ISO 1940-1. Variable speed control single-phase AC external rotor motor in closed design in IP44. Ball-bearing mounted with insulation for humidity. Maintenance and radio free Supplied with external terminal box in IP 65 protection class.
