Helios Ventilatoren 7191 Radial extractor 400 V 610 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage 400 V
- Frequency: 50 Hz
- Power consumption: 0.08 kW
- Material of housing: Aluminium
- Air quantity unloaded: 610 m³/h.
- Medium temperature: -20..40°C
- Protection type (IP) IP44
- Nominal diameter of channel 200 mm
- Mounting place: Flat roof
- For ex-zone gas: 2
- Device group according to Directive 94/9/EC: II.
- Explosion protection category for gas: ATEX Gas-Ex protection, Cat. 3G
- Temperature class according to directive 94/9/EC: T3
- Product type
Radial extractor
- Nominal voltage
400 V
0.080 kW
- Air flow rate
610 m³/h
- Suitable for pipe Ø
200 mm
- Min. temperature
-20 °C
- Max. temperature
40 °C
IP44
- Material
Aluminium
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161550 Helios Ventilatoren 7191 Radial extractor 400 V 610 m³/h 200 mm
Description

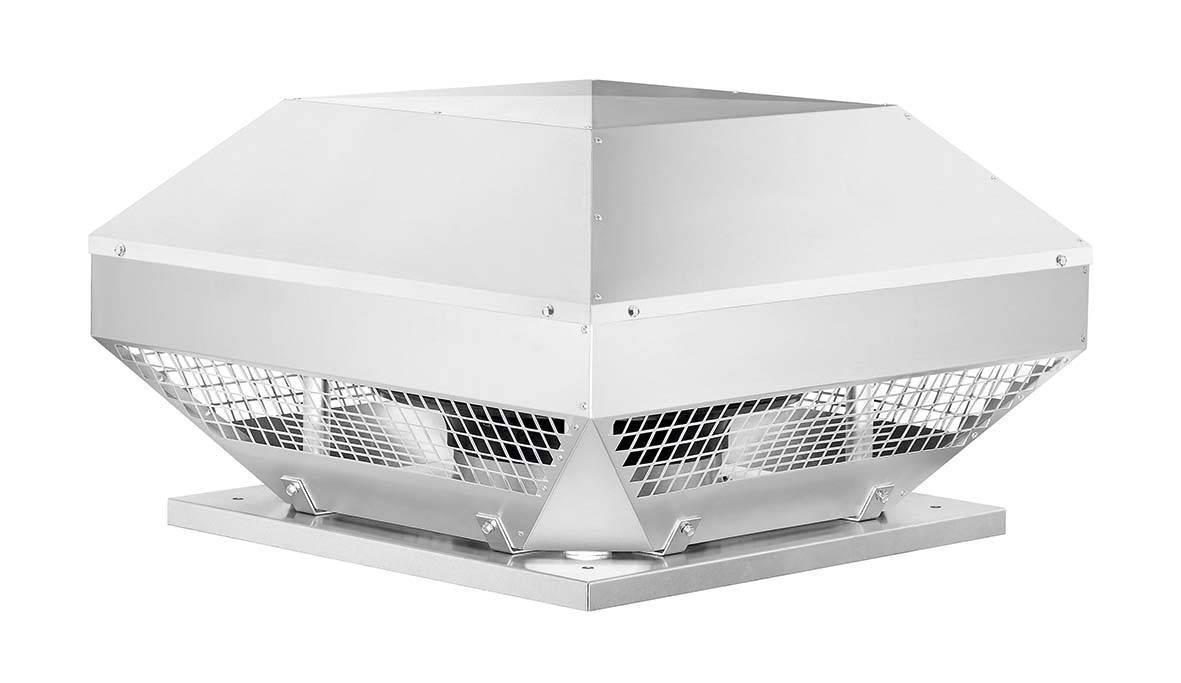

Horizontally blowing roof fan with efficiency-optimized aluminum housing and newly developed high-performance radial wheel, explosion-protected according to ATEX. Case made from seawater resistant aluminum with integrated intrusion protection. Motor support plate and base plate made of galvanized steel with input nozzle made of aluminum. Base plate with threaded screw for fixing suction-side accessories (hole pattern according to DIN 24155, Bl. 3). Guards as standard on the discharge side according to DIN EN ISO 13857. High-power radial impeller with backward curved blades made of aluminum. Dynamically weighted according to DIN ISO 1940-1. Controllable rev three-phase external rotor motor in closed design in IP44. Ball-bearing mounted with insulation for humidity. Maintenance and radio free Ex design according to ATEX.
