Helios Ventilatoren 7352 Radial extractor 400 V 4030 m³/h 400 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Material of housing: Aluminium
- Surface protection housing: Other
- Self-activating cap integrated: No.
- Volume flow 4030 m³/h
- Rated output: 260 W
- Medium temperature: -20..60°C
- Protection class (IP) IP54
- Nominal diameter of channel 400 mm
- Discharge direction: Horizontal
- Product type
Radial extractor
- Nominal voltage
400 V
260.000 W
- Air flow rate
4030 m³/h
- Suitable for pipe Ø
400 mm
- Min. temperature
-20 °C
- Max. temperature
60 °C
IP54
- Material
Aluminium
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161591 Helios Ventilatoren 7352 Radial extractor 400 V 4030 m³/h 400 mm
Description

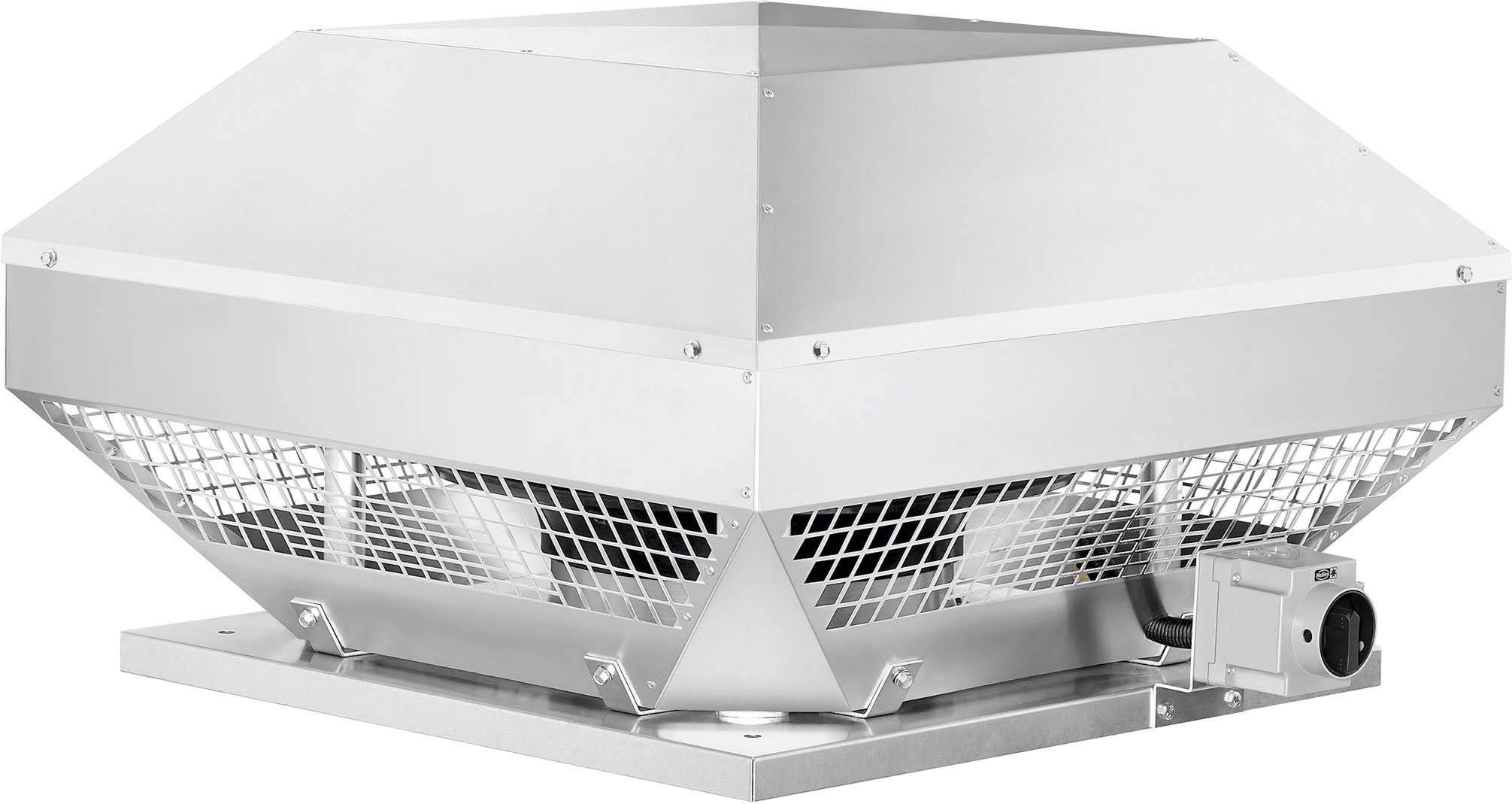

Horizontal blowing roof fan with efficiency-optimized aluminum casing and newly developed high-performance radial wheel. Case made from seawater resistant aluminum with integrated intrusion protection. Motor support plate and base plate with inlet nozzle made of galvanized steel. Base plate with threaded screws for attaching suction-side accessories (hole pattern according to DIN 24155, sheets. 3). Guards as standard on the discharge side according to DIN EN ISO 13857. High-power radial impeller with backward curved blades made of plastic. Dynamically weighted according to DIN ISO 1940-1. Controllable rev three-phase external rotor motor in a closed design in IP 55. Ball-bearing mounted with insulation for humidity. Maintenance and radio free With external revision switch standard, protection class IP 65.
