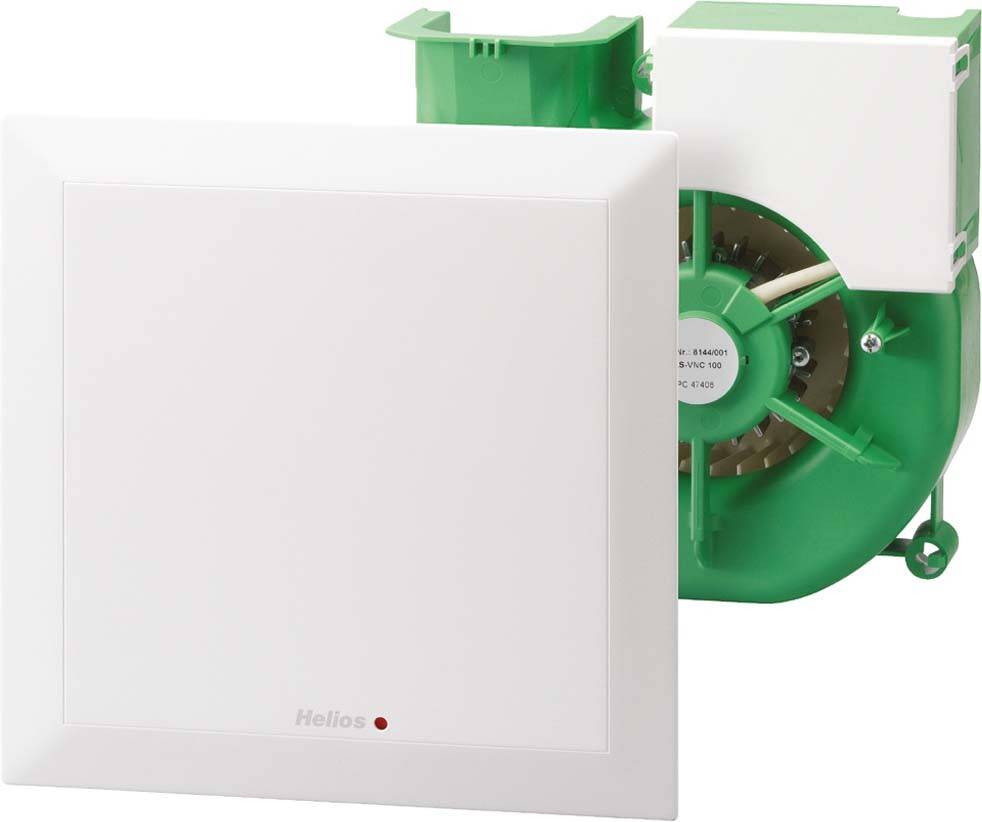

Helios Ventilatoren 8133 Wall fan 0 V 60 m³/h 80 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal width 80 mm
- Volume flow 60 m³/h
- Colour: white
- Medium temperature 0..40°C
- Mounting type: Surface/flush-mounted
- Rated voltage: 230 V
- Mains frequency 50 Hz
- Assembly: With base load circuit
- Nominal current: 0.13 A
- Speed 1064 1 rpm
- Housing material: Plastic
- Width 260 mm
- Height: 260 mm
- Depth: 130 mm
- Product type
Wall fan
- Nominal voltage
0 V
18 W
- Rotational speed
1064 U/min
- Air flow rate
60 m³/h
- Suitable for pipe Ø
80 mm
- Ventilation features
Adjustable
- Noise emission (max.)
39 dBa
- Factory colour
White
- Material
Plastic
- Dim
(W x H x D) 260.00 x 260.00 x 130.00 mm
- Width
260.00 mm
- Height
260.00 mm
- Depth
130.00 mm
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161434 Helios Ventilatoren 8133 Wall fan 0 V 60 m³/h 80 mm
Description
Ventilator insert *ultraSilence* without afterflow, with 2 power settings 60/35 m³/h Volume flow for demand and basic ventilation. Spiral casing with aerodynamic and acoustic optimized radial impeller, high pressure reserve and low noise level. Noise protection acc. To DIN 4109 T.2. Tool-free slide-in assembly with the simultaneous electrical contact connection of the plug-in coupling. Energy-saving capacitor motor in a closed cast aluminum housing. Maintenance-free ball bearings for 40,000 operation hours. Flat, elegant facade, room-side - award-winning multiple design - made from high-quality plastic, alpine white. Air filter (class G2) as a continuous filter (dishwasher-proof) under the foldable, closed front plate. Integrated filter contamination display with optical warning signal for upcoming cleaning. Control: Demand and basic ventilation level The small power level can be directly connected for continuous operation. The large stage is then controlled manually via commercially available 2-pin on/off-switch parallel to the room light. Manual control of both stages is possible with switch DSEL 2 (accessory no. 1306). Output: Demand ventilation = 60 m³/h, basic ventilation = 35 m³/h Noise: Sound pressure at AL = 10m² = 35/26 dB(A) sound power 39/30 dB(A) Protection type: IPX5 (water-proof), insulated, suitable for installation in the area 1 of wet rooms Electrical data: 230 V, 50 Hz, 18/9 watts, supply: NYM-O, 3x1.5mm²
