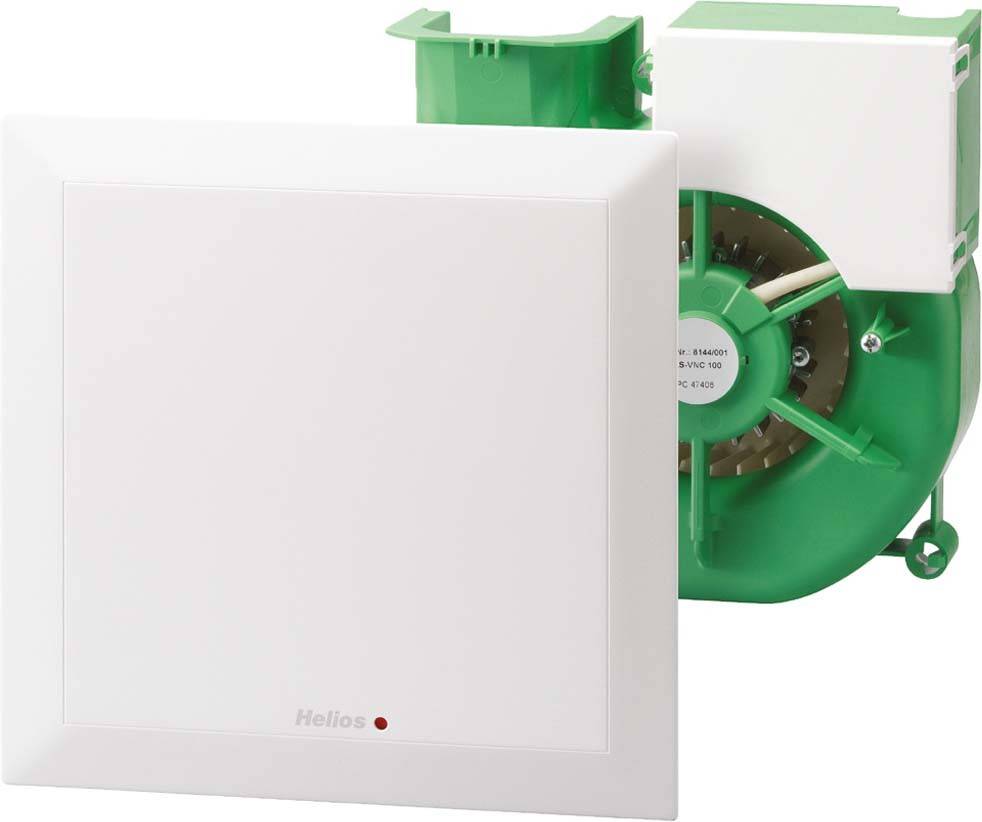

Helios Ventilatoren 8136 Wall fan 0 V 100 m³/h 80 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal width 80 mm
- Volume flow 100 m³/h
- Colour: white
- Medium temperature 0..40°C
- Mounting type: Surface/flush-mounted
- Rated voltage: 230 V
- Mains frequency 50 Hz
- Assembly: With base load circuit
- Nominal current: 0.17 A
- Speed 1790 1 rpm
- Housing material: Plastic
- Width 260 mm
- Height: 260 mm
- Depth: 130 mm
- Product type
Wall fan
- Nominal voltage
0 V
29 W
- Rotational speed
1790 U/min
- Air flow rate
100 m³/h
- Suitable for pipe Ø
80 mm
- Ventilation features
Adjustable
- Noise emission (max.)
51 dBa
- Factory colour
White
- Material
Plastic
- Dim
(W x H x D) 260.00 x 260.00 x 130.00 mm
- Width
260.00 mm
- Height
260.00 mm
- Depth
130.00 mm
- Operating voltage
0 V
- Max. temperature
40 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161452 Helios Ventilatoren 8136 Wall fan 0 V 100 m³/h 80 mm
Description
Ventilator insert with 3 power settings (100/60/35 m3/h) for requirement and basic ventilation. Ready-to-use delivery with flat inner facade (alpine white) and ultraSilence® technology. With continuous filter and filter cleaning display as standard. Integrated connector, for electrical connection. Protectively insulated, class II, IP X5. For installation in area 1 of wet rooms. Maintenance-free, ball-bearing energy-saving motor 230 V~, 50 Hz, 29/18 W. sound power 51/39/30 dB (A), sound pressure 47/35/26 dB(A).* * For AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, discharge side. Specification as per DIN 18017, T.3, Edition 1990, point 6.2.4. Footnote 3. Application area comfortable through 3 power levels. For ventilation in the home or in two room. The medium or small power level can be connected for continuous operation and switched by means of DSE2 (accessories). Manual control of all three levels via DSEL 3. Technical data Follow-up time: - Flow current approx. m³/h: 100/60/35 Power consumption approx. Watts: 29/18/9 Switching pressure level 1) approx. dB(A) at 10 m² equivalent absorption area: 51/1.5 Sound power level 1) LWA approx. dB(A): 47/39/30 Electrical connection: 230 V~, 50Hz Electrical supply in mm²: NYM-O 4 x 35/26 Protection class II without PE connection according to circuit diagram no.: SS-874 All performance and noise specifications according to DIN 24163, DIN 24166, DIN 45635, DIN 44974 1) in combination with housing type ELS-GU, discharge side.
