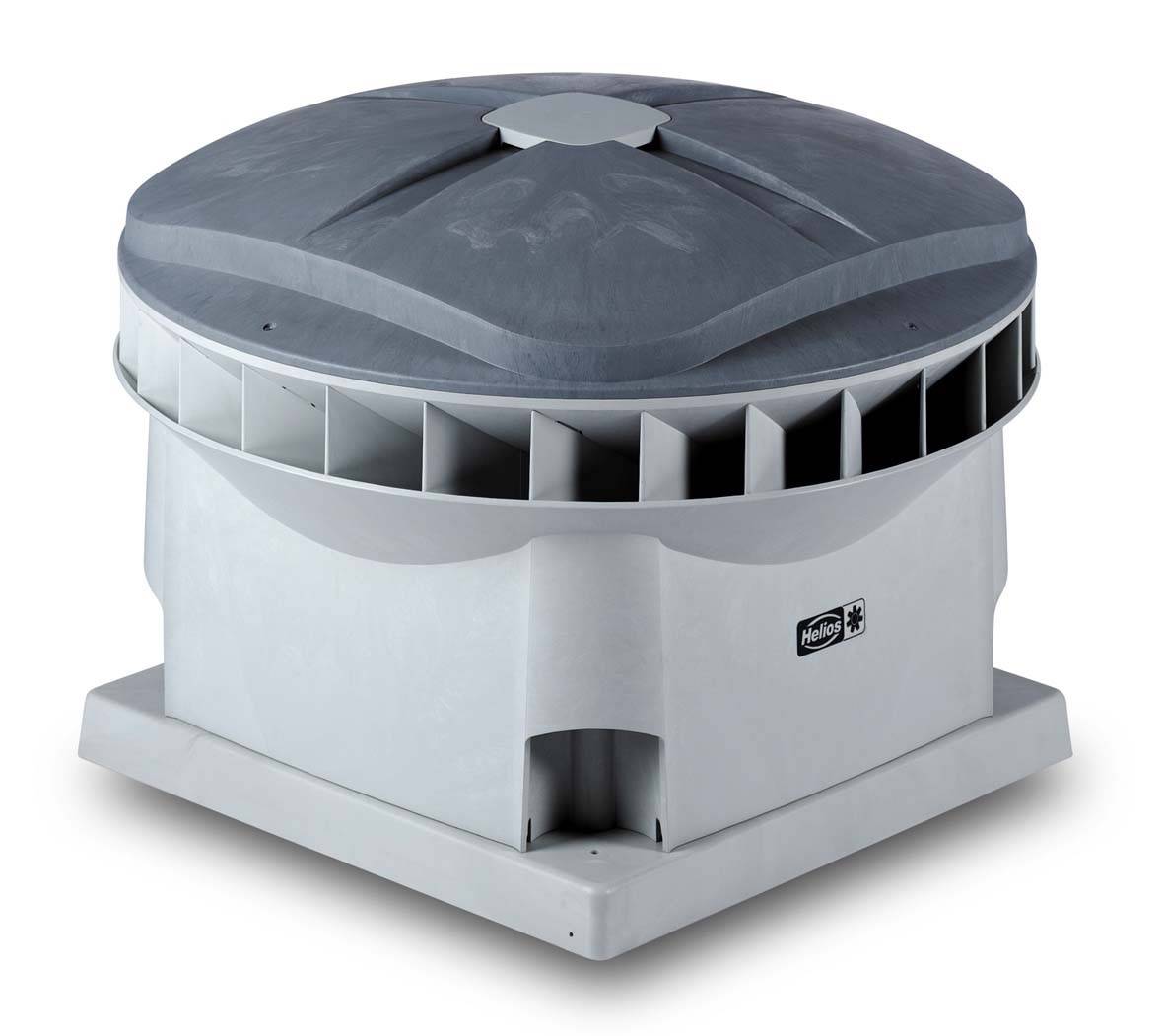

Helios Ventilatoren 8320 Radial extractor 230 V 2010 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Housing material: Plastic
- Surface protection housing: Other
- Self-activating cap integrated: No.
- Volume flow 2010 m³/h
- Rated output: 180 W
- Medium temperature: -30..60°C
- Protection class (IP) IP54
- Nominal diameter of channel 200 mm
- Exhaust direction: Vertical
- Product type
Radial extractor
- Nominal voltage
230 V
180.000 W
- Air flow rate
2010 m³/h
- Suitable for pipe Ø
200 mm
- Min. temperature
-30 °C
- Max. temperature
60 °C
IP54
- Factory colour
Grey
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161326 Helios Ventilatoren 8320 Radial extractor 230 V 2010 m³/h 200 mm
Description
Roof fan with EC technology. Aerodynamic casing made of high-quality polypropylene in gray, diagonally blowing. Operating range from -30 to +80°C. Integrated guide vanes for optimum efficiency. For horizontal mounting. Diagonal impeller made of aluminum, motor-impeller unit dynamically balanced. Electronically commutation DC external rotor motor with ball bearing for continuous operation. High efficiency even in control mode. Maintenance and radio free Infinitely variable speed control with the speed potentiometer P.10 (accessory). In conjunction with the universal control system EUR EC (accessories), the fan can be used to control differential pressure, differential temperature or flow speed.
