Helios Ventilatoren 8886 Radial extractor 230 V 1020 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Material of housing: Steel sheet
- Volume flow 1020 m³/h
- Rated output: 0.115 kW
- Protection class (IP) IP54
- Direction: Radial
- Weight: 9800 g
- Channel width 400 mm
- Canal height 200 mm
- Medium temperature: -40..70°C
- Product type
Radial extractor
- Nominal voltage
230 V
0.115 kW
- Air flow rate
1020 m³/h
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP54
- Material
Steel plate
- Weight
9800 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161350 Helios Ventilatoren 8886 Radial extractor 230 V 1020 m³/h
Description

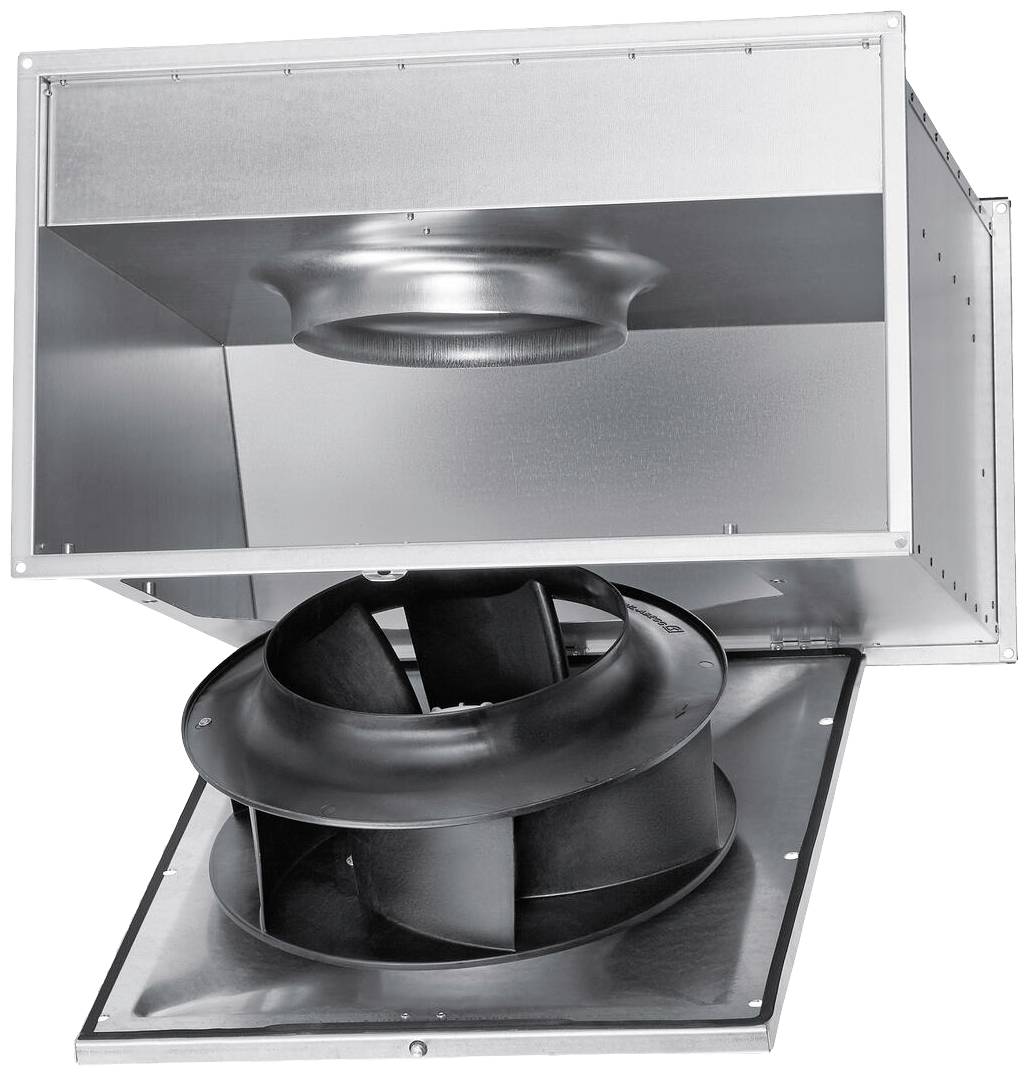

Channel radial fan with reverse curved blades for direct mounting in rectangular duct system, fan unit can be swiveled out. Casing made of zinc-plated sheet steel with standardized channel flange profiles on both sides, space-saving design, service-friendly by swinging motor-impeller unit. High-power radial impeller with backward curved blades made of plastic and galvanized steel. Vibration-free operation due to dynamic balancing according to quality level G 6.3 DIN ISO 1940 T.1. Drive: Maintenance-free single-phase alternating current external rotor motor, closed design, integrated thermal contacts wired in series with the winding (automatic resetting), speed can be controlled by means of 5-step transformer or electronically (continuous), winding with moisture protection impregnation, sealed, low-noise ball bearings with long-term lubrication. Mains connection at pre-mounted terminal box (IP44).
