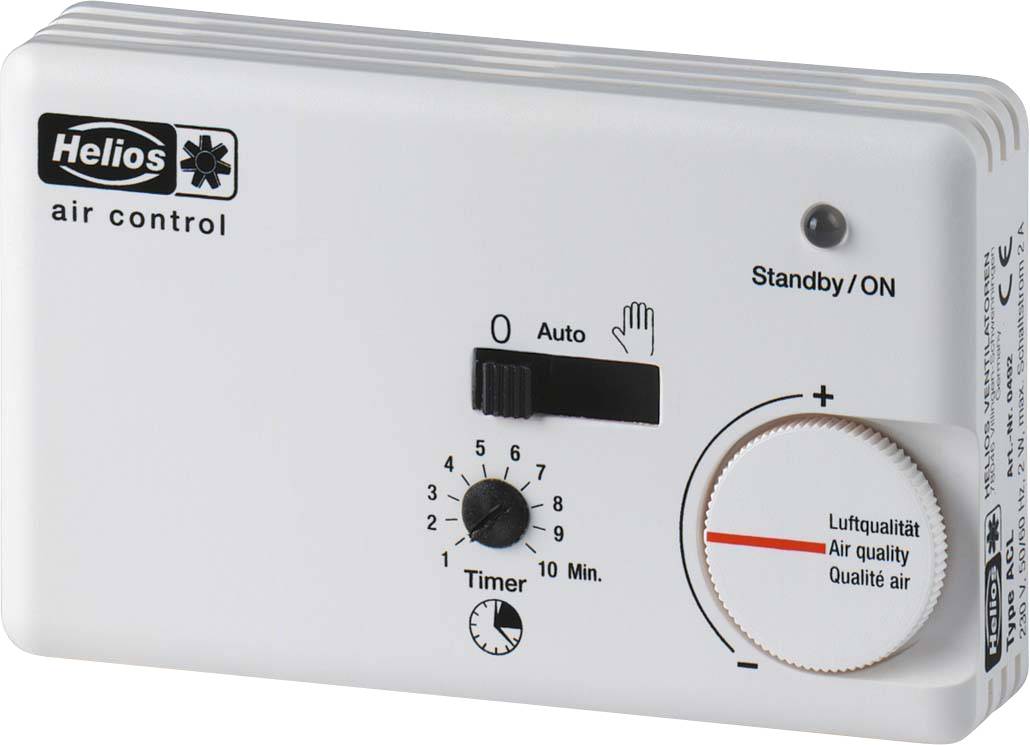

Name: Helios Ventilatoren ACL Air quality controller Light grey
Brand: Helios Ventilatoren
SKU: 2296534

Technical specifications

Suitable for speaker fans: Yes
Suitable for roof fan: Yes
Suitable for pipe fans: Yes
Suitable for wall-mounted fan: Yes
Suitable for wall mounted fan: Yes
Suitable for domestic fan: Yes
Suitable for centrifugal fans: Yes
Suitable for circulation fans: Yes

Product type: Air quality controller

Content: 1 pc(s)

Factory colour: Light grey

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2296534 Helios Ventilatoren ACL Air quality controller Light grey

Description

Electronic air quality regulator for controlling one or more 1 and by means of contactor 3 fans. On/off function depending on the room air quality (sensor for oxidizable gases and odors). Adjustable delay time 1-10 min, switch-on delay approx. 5 sec. Flat AP housing, light gray plastic, protection class IP 30. 230 V~, 50/60 Hz, I max. 2 A inductive.

This text is machine translated.

Description

Electronic air quality regulator for controlling one or more 1 and by means of contactor 3 fans. On/off function depending on the room air quality (sensor for oxidizable gases and odors). Adjustable delay time 1-10 min, switch-on delay approx. 5 sec. Flat AP housing, light gray plastic, protection class IP 30. 230 V~, 50/60 Hz, I max. 2 A inductive.

This text is machine translated.
