Image similar

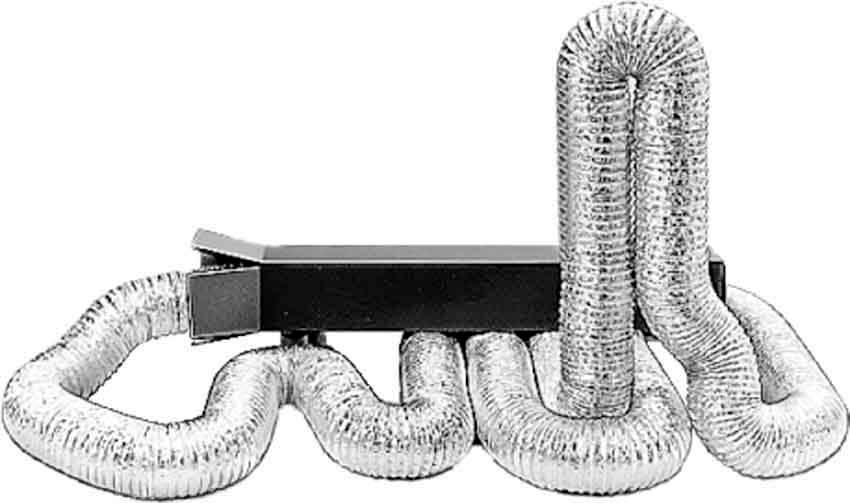

Helios Ventilatoren ALF 400 Flexible air duct (Ø x L) 400 mm x 10 m
EAN:
Part number:
Item no:
Technical specifications
- Number of slices: 2 ply
- Folded: no.
- Compressed: Yes
- Material 1. Layer, inner layer: Plastic
- Material 2. Layer: Aluminum
- Nominal inner diameter 400 mm
- Product type
Flexible air duct
- (Ø)
400 mm
- Max. temperature
+100 °C
- Length
10 m
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293291 Helios Ventilatoren ALF 400 Flexible air duct (Ø x L) 400 mm x 10 m
Description
Fully flexible ventilation pipe made of two-layer polyester film, aluminum-coated. Incorporated spring steel spiral for stiffening. Minimum bending radius, can be bent back as required, no fatigue, no leakage. No toxic gas release in case of fire, self-extinguishing. Operating temperature from -20 °C to 120 °C, maximum operating pressure 2500 Pa, max. flow speed 30 m/s.
