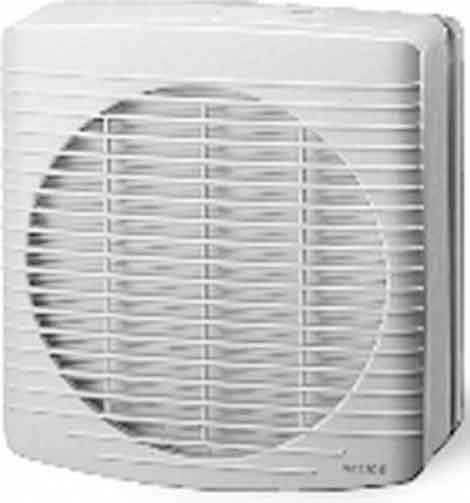

Helios Ventilatoren GX 300 Wall and window fan 230 V 1615 m³/h 300 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Bleeding
- Conveying medium temperature: -20..40 °C.
- Nominal diameter 300 mm
- Mains frequency 50 Hz
- Shutter flap: Electrical
- Product type
Wall and window fan
- Nominal voltage
230 V
0.125 kW
- Rotational speed
1250 U/min
- Air flow rate
1615 m³/h
- Suitable for pipe Ø
300 mm
- Ventilation features
Automatic deflector blades
- Noise emission (max.)
68 dBa
IP44
- Factory colour
White
- Material
Plastic
- Weight
7.1 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296970 Helios Ventilatoren GX 300 Wall and window fan 230 V 1615 m³/h 300 mm
Description
Window built-in fan with electrically operated inner closure and external rain deflector. Housing made of break-proof plastic, room-side with sealing lamellae-closure, flat plastic rain-proof grillee on the outside. Impeller, axial made of plastic. AC capacitor motor, closed design, infinitely variable speed, maintenance-free. Ball bearing with long-term lubrication.
