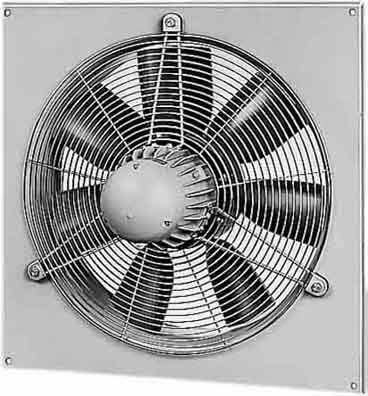

Image similar
Helios Ventilatoren HQD 315/4/2 TK Wall fan (Ø) 315 mm Wall mounting option
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 2845 rpm
- Conveying medium temperature: -30..50 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 4190 m³/h
- Product type
Wall fan
- Operating voltage
400 V
- (Ø)
315 mm
- Rotational speed
2845 U/min
- Fan features
Wall mounting option
- Dim
(Ø) 315 mm
- Weight
10.5 kg
n.rel.
- Rotor blades
7
- Reversible rotation direction
Yes
- Factory colour
White
- Air discharge
4190 m³/h
- Material
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297469 Helios Ventilatoren HQD 315/4/2 TK Wall fan (Ø) 315 mm Wall mounting option
Description
Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized sheet steel, double painted, color papyrus white. Impeller with 7 thermoplastic blades. High efficiency, low operating noise. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit rotor motor, with Dahlander winding (pole-switchable), closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
