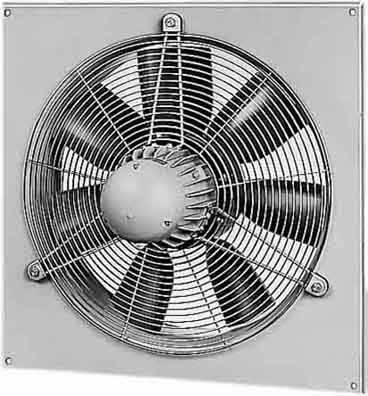

Helios Ventilatoren HQD 315/8/4 TK Wall fan (Ø) 315 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 1445 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 2060 m³/h
- Product type
Wall fan
- Operating voltage
400 V
- (Ø)
315 mm
- Air flow rate
2060 m³/h
- Rotational speed
1445 U/min
- Dim
(Ø) 315 mm
- Weight
10 kg
n.rel.
- Rotor blades
7
- Reversible rotation direction
Yes
- Factory colour
White
- Air discharge
2060 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294427 Helios Ventilatoren HQD 315/8/4 TK Wall fan (Ø) 315 mm
Description
Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized sheet steel, double painted, color papyrus white. Impeller with 7 thermoplastic blades. High efficiency, low operating noise. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit rotor motor, with Dahlander winding (pole-switchable), closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
This text is machine translated.
