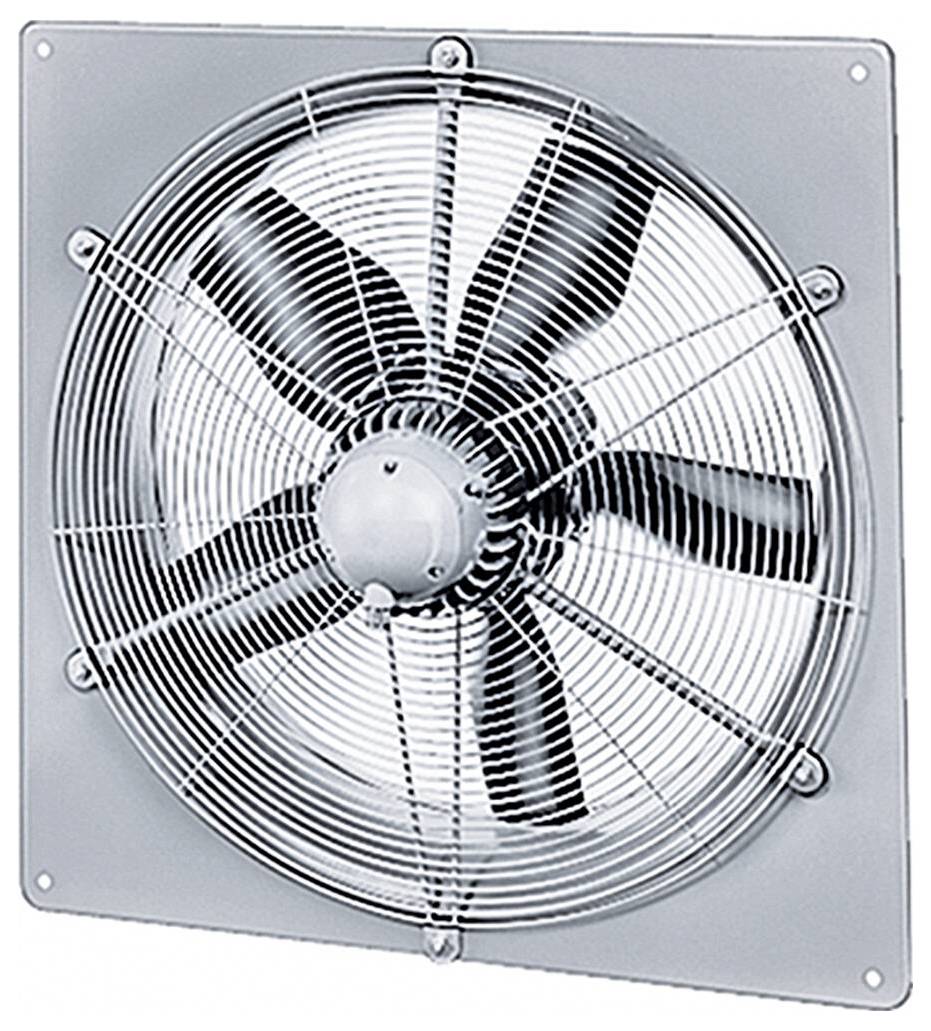

Image similar
Helios Ventilatoren HQD 560/6 TK Axial fan 8180 m³/h 560 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation and ventilation
- Protection class (IP) IP55
- Rated voltage: 400 V
- Mains frequency 50 Hz
- Volume flow 8180 m³/h
- Nominal width 560 mm
- Medium temperature: -30..60°C
- Speed 965 1 rpm
- Shutter flap: Without
- Product type
Axial fan
- Rotational speed
965 U/min
- Air flow rate
8180 m³/h
- Suitable for pipe Ø
560 mm
- Ventilation features
Adjustable
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548647 Helios Ventilatoren HQD 560/6 TK Axial fan 8180 m³/h 560 mm
Description
Axial high-performance fan with square mounting plate, intake nozzle, directly driven. Square installation plate with molded nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors controlled by voltage reduction Speed, thermal contacts, closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
