Name: Helios Ventilatoren HQD 630/12/6 TK Axial fan 10470 m³/h 630 mm
Brand: Helios Ventilatoren
SKU: 3551727

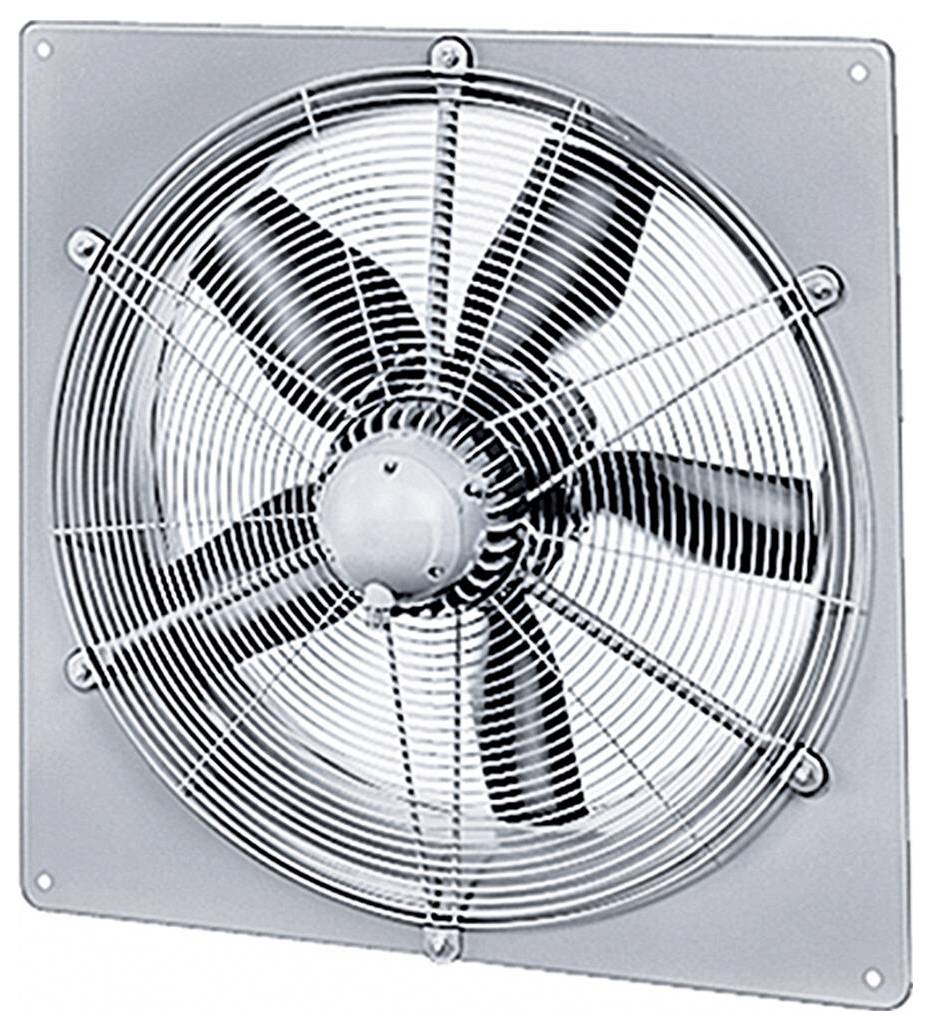

A large metal ventilation fan with five blades is mounted on a square frame. The blades are enclosed by a wire protective grill.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: Ventilation and ventilation
Protection type (IP): IP56
Rated voltage: 400 V
Mains frequency 50 Hz
Volume flow 10470 m³/h
Nominal width 630 mm
Medium temperature: -30..50°C
Speed 935 1 rpm
Shutter flap: Without

Product type: Axial fan

Rotational speed: 935 U/min

Air flow rate: 10470 m³/h

Suitable for pipe Ø: 630 mm

Ventilation features: Adjustable

Material: GRP

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3551727 Helios Ventilatoren HQD 630/12/6 TK Axial fan 10470 m³/h 630 mm

Description

Axial high-performance fan with square mounting plate, insertion nozzle, directly driven.Square mounting plate with nozzle made of galvanized steel plate. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.

This text is machine translated.
