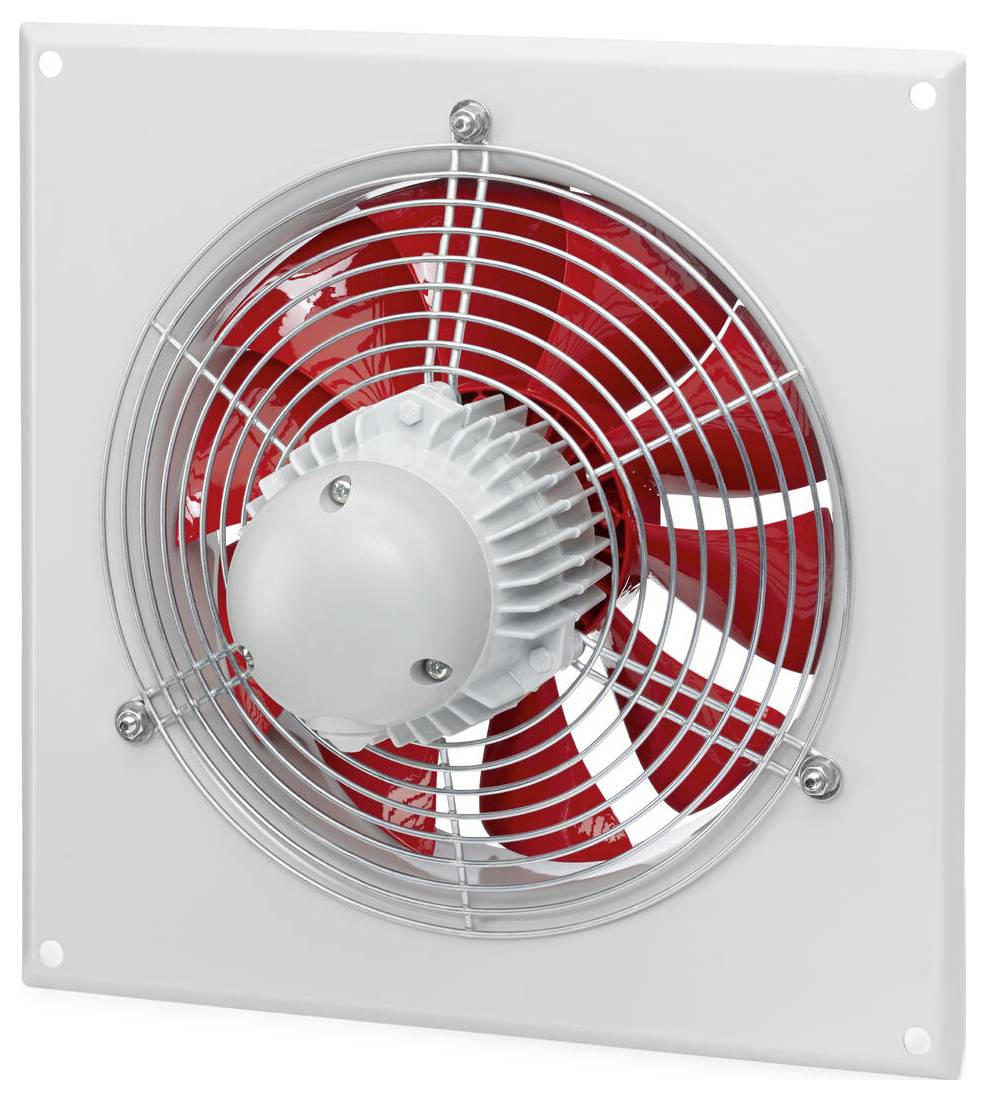

Image similar
Helios Ventilatoren HQW 200/2 Axial fan 930 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation and ventilation
- Protection class (IP) IP54
- Rated voltage: 230 V
- Mains frequency 50 Hz
- Volume flow 930 m³/h
- Nominal width 200 mm
- Medium temperature: -30..60°C
- Speed 2250 1 rpm
- Shutter flap: Without
- Product type
Axial fan
- Rotational speed
2250 U/min
- Air flow rate
930 m³/h
- Suitable for pipe Ø
200 mm
- Ventilation features
Adjustable
- Material
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548648 Helios Ventilatoren HQW 200/2 Axial fan 930 m³/h 200 mm
Description
Axial high-performance fan with square mounting plate, intake nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized steel plate, double painted, papyrus white color. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reversible.
