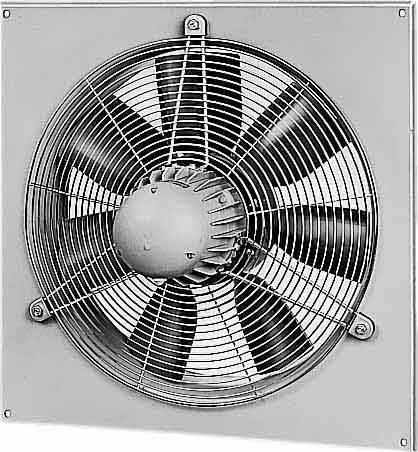

Helios Ventilatoren HQW 250/6 TK Wall fan (Ø) 250 mm Overheating protection
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 930 rpm
- Conveying medium temperature: -30..40 °C.
- Nominal diameter 250 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow 660 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
250 mm
- Air flow rate
660 m³/h
- Rotational speed
930 U/min
- Fan features
Overheating protection
- Dim
(Ø) 250 mm
- Weight
6.5 kg
n.rel.
- Reversible rotation direction
Yes
- Factory colour
White
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297466 Helios Ventilatoren HQW 250/6 TK Wall fan (Ø) 250 mm Overheating protection
Description
Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized sheet steel, double painted, color papyrus white. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
