Helios Ventilatoren HQW 450/4 Wall fan (Ø) 450 mm Overheating protection
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial wall fan, ventilation
- Speed: 1380 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 450 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow 5770 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
450 mm
- Rotational speed
1380 U/min
- Fan features
Overheating protection
- Dim
(Ø) 450 mm
- Weight
15.5 kg
n.rel.
- Reversible rotation direction
Reversible
- Factory colour
White
- Air discharge
5770 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296476 Helios Ventilatoren HQW 450/4 Wall fan (Ø) 450 mm Overheating protection
Description

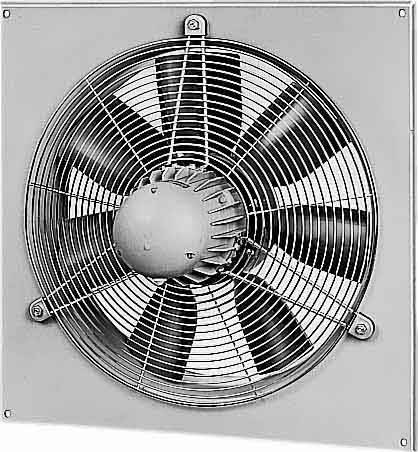

Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized sheet steel, double painted, color papyrus white. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
