Name: Helios Ventilatoren HRFD 630/12/6 Axial fan 10470 m³/h 630 mm
Brand: Helios Ventilatoren
SKU: 3549265

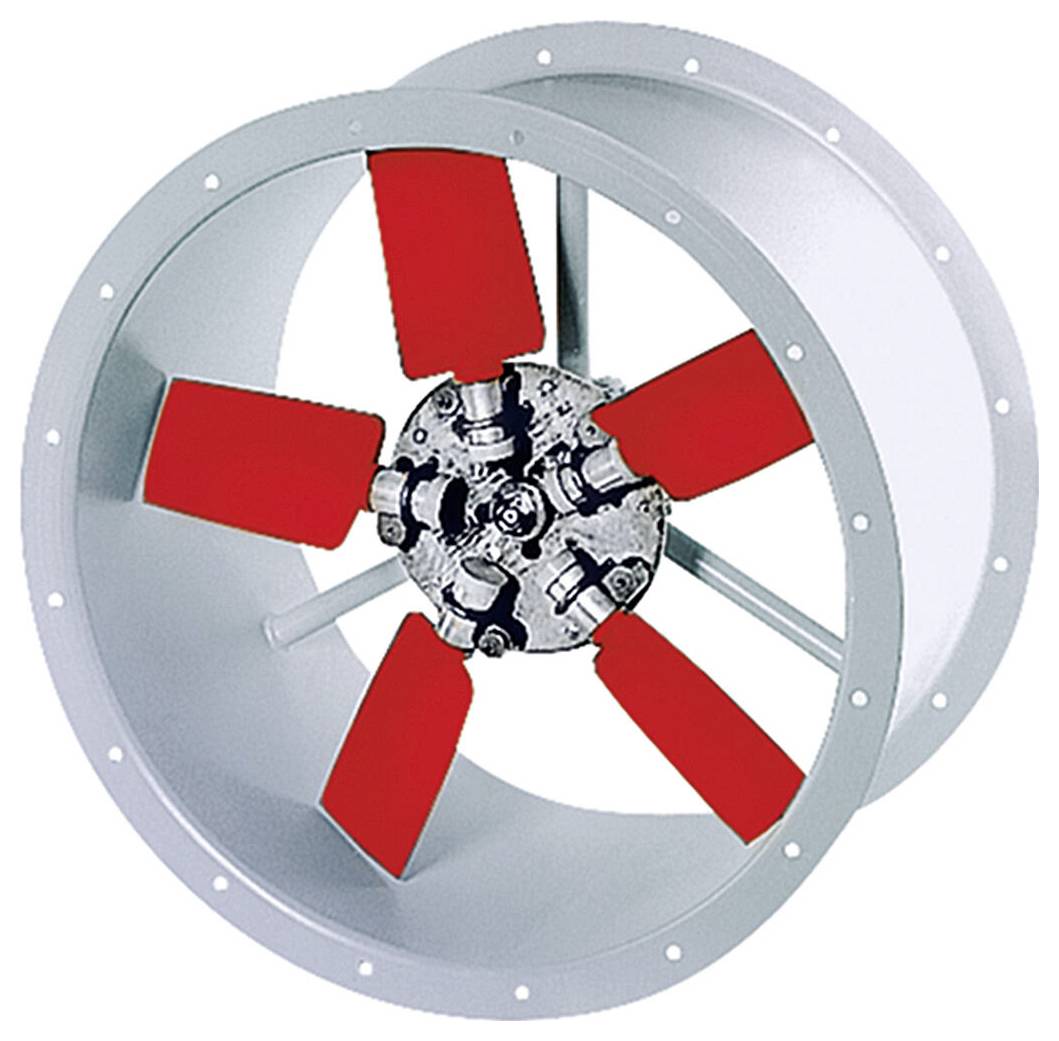

A large industrial fan with red blades, set within a circular metallic frame, designed for ventilation or cooling applications.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: Ventilation and ventilation
Protection class (IP) IP55
Rated voltage: 400 V
Mains frequency 50 Hz
Volume flow 10470 m³/h
Nominal width 630 mm
Medium temperature: -20..40°C
Speed 935 1 rpm
Shutter flap: Without

Product type: Axial fan

Rotational speed: 935 U/min

Air flow rate: 10470 m³/h

Suitable for pipe Ø: 630 mm

Ventilation features: Adjustable

Material: Steel

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3549265 Helios Ventilatoren HRFD 630/12/6 Axial fan 10470 m³/h 630 mm

Description

Axial high-performance fan cylindrical pipe sleeves, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with 7 GRP blades, hub made of galvanized steel plate, wing position continuously adjustable from outside in a standstill, with Hohem efficiency, balance quality G 6.3 according to VDI 2060 Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.

This text is machine translated.
